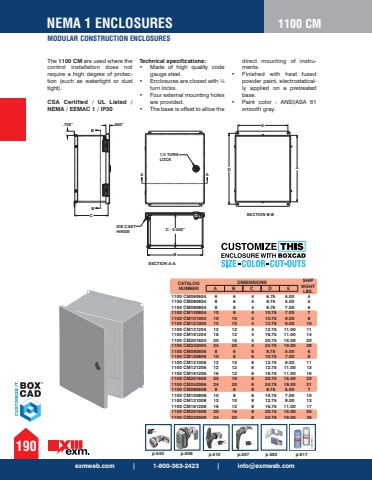

exmweb.com | 1-800-363-2423 | [email protected] CONSTRUCTION ENCLOSURES190NEMA 1 ENCLOSURES 1100 CMThe 1100 CM are used where the control installation does not require a high degree of protection (such as watertight or dust tight). CSA Certified / UL Listed / NEMA / EEMAC 1 / IP30Technical specifications: %u2022 Made of high quality code gauge steel. %u2022 Enclosures are closed with %u00bc turn locks. %u2022 Four external mounting holes are provided. %u2022 The base is offset to allow the direct mounting of instruments. %u2022 Finished with heat fused powder paint, electrostatically applied on a pretreated base. %u2022 Paint color : ANSI/ASA 61 smooth gray.A ABBSECTION A-ASECTION B-B1/4 TURNLOCK.660%u201dCC - 0.500%u201dBED A.750%u201dDIE CASTHINGE1100 CM060604 6 6 4 6.75 5.00 4 1100 CM080604 8 6 4 8.75 5.00 5 1100 CM080804 8 8 4 8.75 7.00 6 1100 CM100804 10 8 4 10.75 7.00 7 1100 CM101004 10 10 4 10.75 9.00 8 1100 CM121004 12 10 4 12.75 9.00 10 1100 CM121204 12 12 4 12.75 11.00 11 1100 CM161204 16 12 4 16.75 11.00 14 1100 CM201604 20 16 4 20.75 15.00 20 1100 CM242004 24 20 4 24.75 19.00 28 1100 CM080606 8 6 6 8.75 5.00 6 1100 CM100806 10 8 6 10.75 7.00 8 1100 CM121006 12 10 6 12.75 9.00 11 1100 CM121206 12 12 6 12.75 11.00 13 1100 CM161206 16 12 6 16.75 11.00 16 1100 CM201606 20 16 6 20.75 15.00 23 1100 CM242006 24 20 6 24.75 19.00 31 1100 CM080608 8 6 8 8.75 5.00 7 1100 CM100808 10 8 8 10.75 7.00 10 1100 CM121008 12 10 8 12.75 9.00 13 1100 CM161208 16 12 8 16.75 11.00 17 1100 CM201608 20 16 8 20.75 15.00 25 1100 CM242008 24 20 8 24.75 19.00 34CATALOG NUMBER A B C D EDIMENSIONS SHIP WGHT LBS.p.540 p.506 p.510 p.507 p.592 p.617
