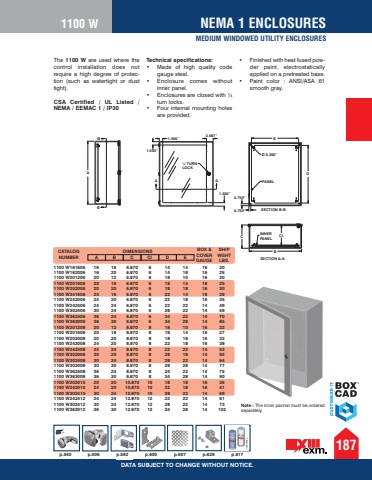

187NEMA 1 ENCLOSURESMEDIUM WINDOWED UTILITY ENCLOSURES1100 WBBA%u00bc TURNLOCKC0.750%u201d1.500%u201dSECTION A-A1.500%u201dA A2.687%u201d E1.500%u201dD%u00d8 0.390%u201dBPANELSECTION B-B0.750%u201dCi INNERPANELCATALOG NUMBERDIMENSIONS SHIP WGHT LBS.1100 W161606 16 16 6.870 6 14 14 16 20 1100 W162006 16 20 6.870 6 14 18 16 25 1100 W201206 20 12 6.870 6 18 10 16 20 1100 W201606 20 16 6.870 6 18 14 16 25 1100 W202006 20 20 6.870 6 18 18 16 30 1100 W241606 24 16 6.870 6 22 14 16 29 1100 W242006 24 20 6.870 6 22 18 16 35 1100 W242406 24 24 6.870 6 22 22 14 49 1100 W302406 30 24 6.870 6 28 22 14 59 1100 W362406 36 24 6.870 6 34 22 14 70 1100 W363006 36 30 6.870 6 34 28 14 85 1100 W201208 20 12 8.870 8 18 10 16 22 1100 W201608 20 16 8.870 8 18 14 16 27 1100 W202008 20 20 8.870 8 18 18 16 32 1100 W242008 24 20 8.870 8 22 18 16 38 1100 W242408 24 24 8.870 8 22 22 14 53 1100 W302008 30 20 8.870 8 28 18 14 55 1100 W302408 30 24 8.870 8 28 22 14 64 1100 W303008 30 30 8.870 8 28 28 14 77 1100 W362408 36 24 8.870 8 34 22 14 75 1100 W363008 36 30 8.870 8 34 28 14 90 1100 W202010 20 20 10.870 10 18 18 16 35 1100 W242010 24 20 10.870 10 22 18 16 41 1100 W302410 30 24 10.870 10 28 22 14 69 1100 W242412 24 24 12.870 12 22 22 14 61 1100 W302412 30 24 12.870 12 28 22 14 73 1100 W363012 36 30 12.870 12 34 28 14 102A B C Ci DBOX & COVER GAUGEEDATA SUBJECT TO CHANGE WITHOUT NOTICE.The 1100 W are used where the control installation does not require a high degree of protection (such as watertight or dust tight). CSA Certified / UL Listed / NEMA / EEMAC 1 / IP30 Technical specifications:%u2022 Made of high quality code gauge steel. %u2022 Enclosure comes without inner panel. %u2022 Enclosures are closed with %u00bc turn locks. %u2022 Four internal mounting holes are provided. %u2022 Finished with heat fused powder paint, electrostatically applied on a pretreated base. %u2022 Paint color : ANSI/ASA 61 smooth gray. Note : The inner pannel must be ordered separately.p.540 p.506 p.592 p.600 p.607 p.628 p.617
