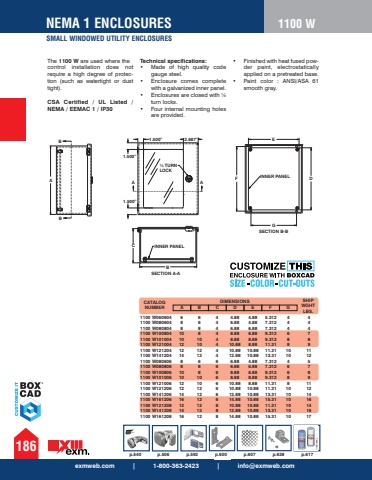

NEMA 1 ENCLOSURESSMALL WINDOWED UTILITY ENCLOSURES1861100 WThe 1100 W are used where the control installation does not require a high degree of protection (such as watertight or dust tight). CSA Certified / UL Listed / NEMA / EEMAC 1 / IP30 Technical specifications:%u2022 Made of high quality code gauge steel. %u2022 Enclosure comes complete with a galvanized inner panel. %u2022 Enclosures are closed with %u00bc turn locks. %u2022 Four internal mounting holes are provided. %u2022 Finished with heat fused powder paint, electrostatically applied on a pretreated base. %u2022 Paint color : ANSI/ASA 61 smooth gray.CATALOG NUMBERDIMENSIONS SHIP WGHT LBS.1100 W060604 6 6 4 4.88 4.88 5.312 4 4 1100 W080604 8 6 4 6.88 4.88 7.312 4 4 1100 W080804 8 8 4 6.88 6.88 7.312 4 4 1100 W100804 10 8 4 8.88 6.88 9.312 6 7 1100 W101004 10 10 4 8.88 8.88 9.312 8 8 1100 W121004 12 10 4 10.88 8.88 11.31 8 9 1100 W121204 12 12 4 10.88 10.88 11.31 10 11 1100 W141204 14 12 4 12.88 10.88 13.31 10 12 1100 W080606 8 6 6 6.88 4.88 7.312 4 5 1100 W080806 8 8 6 6.88 6.88 7.312 6 7 1100 W100806 10 8 6 8.88 6.88 9.312 6 8 1100 W101006 10 10 6 8.88 8.88 9.312 8 9 1100 W121006 12 10 6 10.88 8.88 11.31 8 11 1100 W121206 12 12 6 10.88 10.88 11.31 10 12 1100 W141206 14 12 6 12.88 10.88 13.31 10 14 1100 W161206 16 12 6 14.88 10.88 15.31 10 16 1100 W121208 12 12 8 10.88 10.88 11.31 10 14 1100 W141208 14 12 8 12.88 10.88 13.31 10 16 1100 W161208 16 12 8 14.88 10.88 15.31 10 17A B C D E F GBBA%u00bc TURNLOCKC1.500%u201dSECTION A-A1.500%u201d1.500%u201dA A2.687%u201d EBF DGINNER PANELSECTION B-BINNER PANELexmweb.com | 1-800-363-2423 | [email protected] p.506 p.592 p.600 p.607 p.628 p.617
