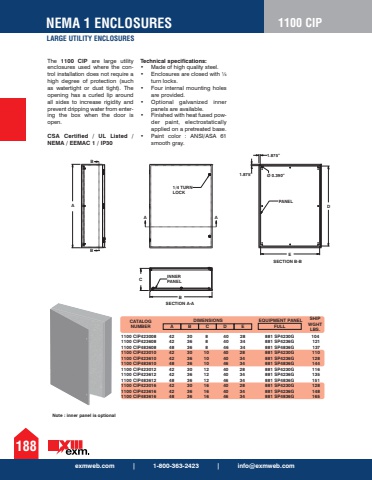

exmweb.com | 1-800-363-2423 | [email protected] 1 ENCLOSURES 1100 CIPThe 1100 CIP are large utility enclosures used where the control installation does not require a high degree of protection (such as watertight or dust tight). The opening has a curled lip around all sides to increase rigidity and prevent dripping water from entering the box when the door is open. CSA Certified / UL Listed / NEMA / EEMAC 1 / IP30 Technical specifications: %u2022 Made of high quality steel. %u2022 Enclosures are closed with %u00bc turn locks. %u2022 Four internal mounting holes are provided. %u2022 Optional galvanized inner panels are available. %u2022 Finished with heat fused powder paint, electrostatically applied on a pretreated base. %u2022 Paint color : ANSI/ASA 61 smooth gray. BBA1.875%u201dSECTION B-BDE1.875%u201d %u00d8 0.390%u201dA ASECTION A-A1/4 TURNLOCKINNERPANEL CBPANELNote : inner panel is optional CATALOG NUMBERDIMENSIONS SHIP WGHT LBS.1100 CIP423008 42 30 8 40 28 104 1100 CIP423608 42 36 8 40 34 121 1100 CIP483608 48 36 8 46 34 137 1100 CIP423010 42 30 10 40 28 110 1100 CIP423610 42 36 10 40 34 128 1100 CIP483610 48 36 10 46 34 144 1100 CIP423012 42 30 12 40 28 116 1100 CIP423612 42 36 12 40 34 135 1100 CIP483612 48 36 12 46 34 151 1100 CIP423016 42 30 16 40 28 128 1100 CIP423616 42 36 16 40 34 148 1100 CIP483616 48 36 16 46 34 165 A B C D E FULLEQUIPMENT PANEL881 SP4230G 881 SP4236G 881 SP4836G 881 SP4230G 881 SP4236G 881 SP4836G 881 SP4230G 881 SP4236G 881 SP4836G 881 SP4230G 881 SP4236G 881 SP4836GLARGE UTILITY ENCLOSURES
