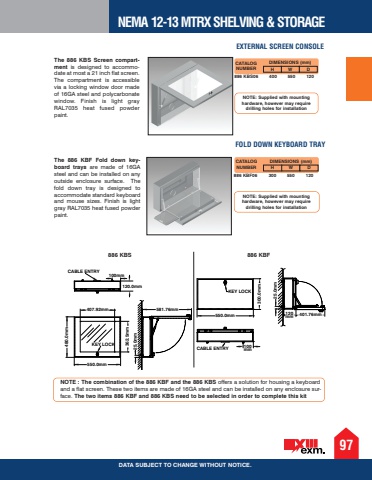

97NEMA 12-13 MTRX SHELVING & STORAGEDATA SUBJECT TO CHANGE WITHOUT NOTICE.The 886 KBF Fold down keyboard trays are made of 16GA steel and can be installed on any outside enclosure surface. The fold down tray is designed to accommodate standard keyboard and mouse sizes. Finish is light gray RAL7035 heat fused powder paint. CATALOG NUMBER886 KBF06 300 550 120H W DDIMENSIONS (mm)NOTE: Supplied with mounting hardware, however may require drilling holes for installationThe 886 KBS Screen compartment is designed to accommodate at most a 21 inch flat screen. The compartment is accessible via a locking window door made of 16GA steel and polycarbonate window. Finish is light gray RAL7035 heat fused powder paint.CATALOG NUMBER886 KBS06 400 550 120 H W DDIMENSIONS (mm)NOTE: Supplied with mounting hardware, however may require drilling holes for installationNOTE : The combination of the 886 KBF and the 886 KBS offers a solution for housing a keyboard and a flat screen. These two items are made of 16GA steel and can be installed on any enclosure surface. The two items 886 KBF and 886 KBS need to be selected in order to complete this kit550.0mm120.0mm480.0mm407.92mm 581.76mmKEY LOCKCABLE ENTRY362.5mm 25.0mm100mm886 KBS550.0mm300.0mm100mm120mm 401.76mm25.0mmKEY LOCKCABLE ENTRY886 KBFEXTERNAL SCREEN CONSOLEFOLD DOWN KEYBOARD TRAY
