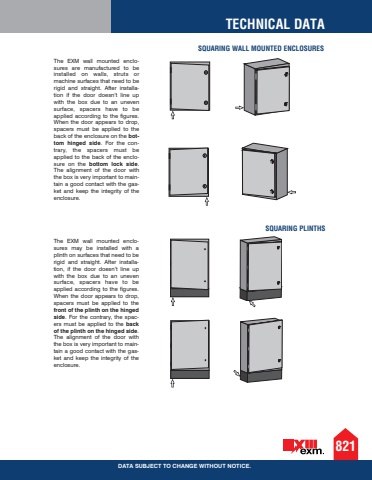

821TECHNICAL DATADATA SUBJECT TO CHANGE WITHOUT NOTICE.SQUARING WALL MOUNTED ENCLOSURESThe EXM wall mounted enclosures are manufactured to be installed on walls, struts or machine surfaces that need to be rigid and straight. After installation if the door doesn%u2019t line up with the box due to an uneven surface, spacers have to be applied according to the figures. When the door appears to drop, spacers must be applied to the back of the enclosure on the bottom hinged side. For the contrary, the spacers must be applied to the back of the enclosure on the bottom lock side. The alignment of the door with the box is very important to maintain a good contact with the gasket and keep the integrity of the enclosure. The EXM wall mounted enclosures may be installed with a plinth on surfaces that need to be rigid and straight. After installation, if the door doesn%u2019t line up with the box due to an uneven surface, spacers have to be applied according to the figures. When the door appears to drop, spacers must be applied to thefront of the plinth on the hinged side. For the contrary, the spacers must be applied to the back of the plinth on the hinged side. The alignment of the door with the box is very important to maintain a good contact with the gasket and keep the integrity of the enclosure. SQUARING PLINTHS
