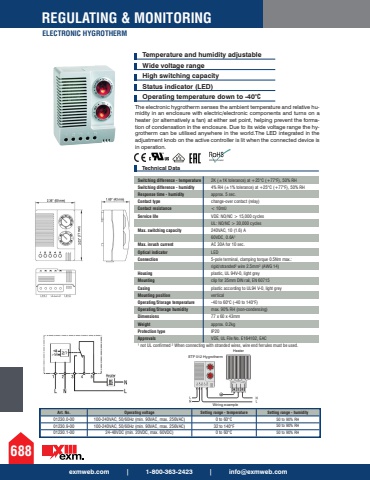

exmweb.com | 1-800-363-2423 | [email protected] & MONITORINGELECTRONIC HYGROTHERM688Technical DataTemperature and humidity adjustable Wide voltage range High switching capacity Status indicator (LED) Operating temperature down to -40%u00b0CThe electronic hygrotherm senses the ambient temperature and relative humidity in an enclosure with electric/electronic components and turns on a heater (or alternatively a fan) at either set point, helping prevent the formation of condensation in the enclosure. Due to its wide voltage range the hygrotherm can be utilised anywhere in the world.The LED integrated in the adjustment knob on the active controller is lit when the connected device is in operation.Switching difference - temperature 2K (%u00b11K tolerance) at +25%u00b0C (+77%u00b0F), 50% RHSwitching difference - humidity 4% RH (%u00b11% tolerance) at +25%u00b0C (+77%u00b0F), 50% RH Response time - humidity approx. 5 sec.Contact type change-over contact (relay)Contact resistance < 10m%u00d9Service life VDE: NO/NC > 15,000 cycles UL: NO/NC > 30,000 cyclesMax. switching capacity 240VAC, 10 (1.6) A 60VDC, 0.6A%u00b9 Max. inrush current AC 30A for 10 sec. Optical indicator LED Connection 5-pole terminal, clamping torque 0.5Nm max.: rigid/stranded%u00b2 wire 2.5mm%u00b2 (AWG 14)Housing plastic, UL 94V-0, light greyMounting clip for 35mm DIN rail, EN 60715 Casing plastic according to UL94 V-0, light grey Mounting position verticalOperating/Storage temperature -40 to 60%u00b0C (-40 to 140%u00b0F)Operating/Storage humidity max. 90% RH (non-condensing)Dimensions 77 x 60 x 43mmWeight approx. 0.2kgProtection type IP20 Approvals VDE, UL File No. E164102, EAC %u00b9 not UL confirmed %u00b2 When connecting with stranded wires, wire end ferrules must be used.Art. No. Operating voltage Setting range - temperature Setting range - humidity01230.0-00 100-240VAC, 50/60Hz (min. 90VAC, max. 256VAC) 0 to 60%u00b0C 50 to 90% RH01230.9-00 100-240VAC, 50/60Hz (min. 90VAC, max. 256VAC) 32 to 140%u00b0F 50 to 90% RH01230.1-00 24-48VDC (min. 20VDC, max. 60VDC) 0 to 60%u00b0C 50 to 90% RHWiring exampleETF 012 HygrothermHeater
