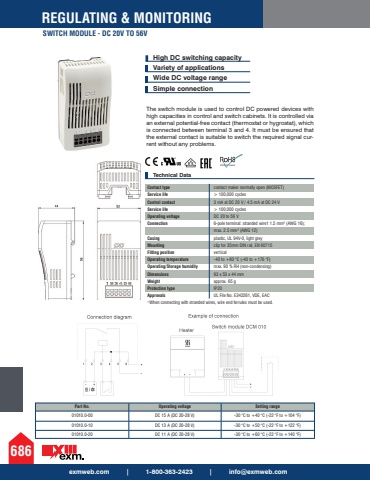

exmweb.com | 1-800-363-2423 | [email protected] MODULE - DC 20V TO 56VREGULATING & MONITORINGTechnical DataHigh DC switching capacity Variety of applications Wide DC voltage range Simple connectionThe switch module is used to control DC powered devices with high capacities in control and switch cabinets. It is controlled via an external potential-free contact (thermostat or hygrostat), which is connected between terminal 3 and 4. It must be ensured that the external contact is suitable to switch the required signal current without any problems.Contact type contact maker normally open (MOSFET)Service life > 100,000 cyclesControl contact 3 mA at DC 20 V / 4.5 mA at DC 24 VService life > 100,000 cyclesOperating voltage DC 20 to 56 V Connection 6-pole terminal: stranded wire1 1.5 mm%u00b2 (AWG 16); max. 2.5 mm%u00b2 (AWG 12) Casing plastic, UL 94V-0, light greyMounting clip for 35mm DIN rail, EN 60715Fitting position verticalOperating temperature -40 to +80 %u00b0C (-40 to +176 %u00b0F) Operating/Storage humidity max. 90 % RH (non-condensing) Dimensions 93 x 53 x 44 mm Weight approx. 65 g Protection type IP20 Approvals UL File No. E342261, VDE, EAC 1 When connecting with stranded wires, wire end ferrules must be used.Part No. Operating voltage Setting range01010.0-00 DC 15 A (DC 20-28 V) -30 %u00b0C to +40 %u00b0C (-22 %u00b0F to +104 %u00b0F)01010.0-10 DC 13 A (DC 20-28 V) -30 %u00b0C to +50 %u00b0C (-22 %u00b0F to +122 %u00b0F)01010.0-20 DC 11 A (DC 20-28 V) -30 %u00b0C to +60 %u00b0C (-22 %u00b0F to +140 %u00b0F)
