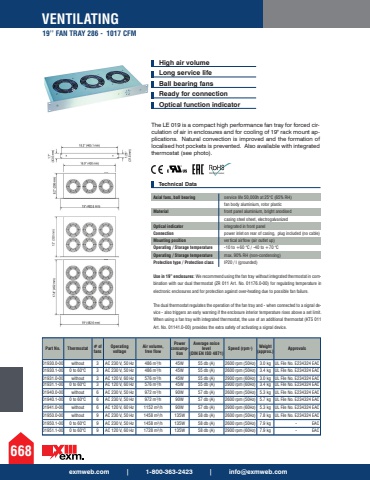

exmweb.com | 1-800-363-2423 | [email protected]%u2019%u2019 FAN TRAY 286 - 1017 CFM668Technical DataHigh air volume Long service life Ball bearing fans Ready for connection Optical function indicatorThe LE 019 is a compact high performance fan tray for forced circulation of air in enclosures and for cooling of 19\plications. Natural convection is improved and the formation of localised hot pockets is prevented. Also available with integrated thermostat (see photo).Axial fans, ball bearing service life 50,000h at 25%u00b0C (65% RH) fan body aluminium, rotor plasticMaterial front panel aluminium, bright anodised casing steel sheet, electrogalvanizedOptical indicator integrated in front panel Connection power inlet on rear of casing, plug included (no cable) Mounting position vertical airflow (air outlet up)Operating / Storage temperature -10 to +60 %u00b0C / -40 to +70 %u00b0COperating / Storage temperature max. 90% RH (non-condensing) Protection type / Protection class IP20 / I (grounded)Use in 19%u201d enclosures: We recommend using the fan tray without integrated thermostat in combination with our dual thermostat (ZR 011 Art. No. 01176.0-00) for regulating temperature in electronic enclosures and for protection against over-heating due to possible fan failure. The dual thermostat regulates the operation of the fan tray and - when connected to a signal device - also triggers an early warning if the enclosure interior temperature rises above a set limit. When using a fan tray with integrated thermostat, the use of an additional thermostat (KTS 011 Art. No. 01141.0-00) provides the extra safety of activating a signal device.Part No. Thermostat # of fansOperating voltageAir volume, free flowPower consumptionAverage noise level (DIN EN ISO 4871)Speed (rpm-1) Weight (approx.) Approvals01930.0-00 without 3 AC 230 V, 50 Hz 486 m%u00b3/h 45W 55 db (A) 2600 rpm (50Hz) 3.0 kg UL File No. E234324 EAC01930.1-00 0 to 60%u00b0C 3 AC 230 V, 50 Hz 486 m%u00b3/h 45W 55 db (A) 2600 rpm (50Hz) 3.4 kg UL File No. E234324 EAC01931.0-00 without 3 AC 120 V, 60 Hz 576 m%u00b3/h 45W 55 db (A) 2900 rpm (60Hz) 3.0 kg UL File No. E234324 EAC01931.1-00 0 to 60%u00b0C 3 AC 120 V, 60 Hz 576 m%u00b3/h 45W 55 db (A) 2900 rpm (60Hz) 3.4 kg UL File No. E234324 EAC01940.0-00 without 6 AC 230 V, 50 Hz 972 m%u00b3/h 90W 57 db (A) 2600 rpm (50Hz) 5.3 kg UL File No. E234324 EAC01940.1-00 0 to 60%u00b0C 6 AC 230 V, 50 Hz 972 m%u00b3/h 90W 57 db (A) 2600 rpm (50Hz) 5.7 kg UL File No. E234324 EAC01941.0-00 without 6 AC 120 V, 60 Hz 1152 m%u00b3/h 90W 57 db (A) 2900 rpm (60Hz) 5.3 kg UL File No. E234324 EAC01950.0-00 without 9 AC 230 V, 50 Hz 1458 m%u00b3/h 135W 58 db (A) 2600 rpm (50Hz) 7.8 kg UL File No. E234324 EAC01950.1-00 0 to 60%u00b0C 9 AC 230 V, 50 Hz 1458 m%u00b3/h 135W 58 db (A) 2600 rpm (50Hz) 7.9 kg - EAC01951.1-00 0 to 60%u00b0C 9 AC 120 V, 60 Hz 1728 m%u00b3/h 135W 58 db (A) 2900 rpm (60Hz) 7.9 kg - EAC
