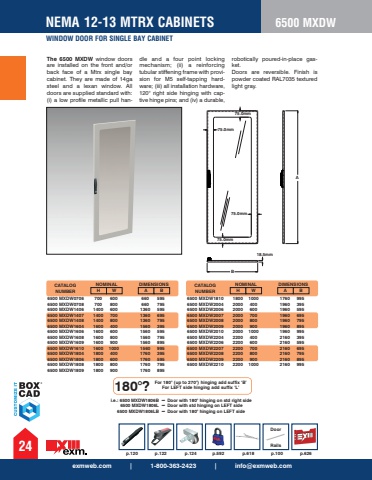

exmweb.com | 1-800-363-2423 | [email protected] 12-13 MTRX CABINETSWINDOW DOOR FOR SINGLE BAY CABINET246500 MXDWThe 6500 MXDW window doors are installed on the front and/or back face of a Mtrx single bay cabinet. They are made of 14ga steel and a lexan window. All doors are supplied standard with: (i) a low profile metallic pull handle and a four point locking mechanism; (ii) a reinforcing tubular stiffening frame with provision for M5 self-tapping hardware; (iii) all installation hardware, 120%u00b0 right side hinging with captive hinge pins; and (iv) a durable, robotically poured-in-place gasket. Doors are reversible. Finish is powder coated RAL7035 textured light gray. B18.5mm75.0mm75.0mm75.0mm75.0mmACATALOG NUMBER6500 MXDW0706 700 600 660 595 6500 MXDW0708 700 800 660 795 6500 MXDW1406 1400 600 1360 595 6500 MXDW1407 1400 700 1360 695 6500 MXDW1408 1400 800 1360 795 6500 MXDW1604 1600 400 1560 395 6500 MXDW1606 1600 600 1560 595 6500 MXDW1608 1600 800 1560 795 6500 MXDW1609 1600 900 1560 895 6500 MXDW1610 1600 1000 1560 995 6500 MXDW1804 1800 400 1760 395 6500 MXDW1806 1800 600 1760 595 6500 MXDW1808 1800 800 1760 795 6500 MXDW1809 1800 900 1760 895 CATALOG NUMBER6500 MXDW1810 1800 1000 1760 995 6500 MXDW2004 2000 400 1960 395 6500 MXDW2006 2000 600 1960 595 6500 MXDW2007 2000 700 1960 695 6500 MXDW2008 2000 800 1960 795 6500 MXDW2009 2000 900 1960 895 6500 MXDW2010 2000 1000 1960 995 6500 MXDW2204 2200 400 2160 395 6500 MXDW2206 2200 600 2160 595 6500 MXDW2207 2200 700 2160 695 6500 MXDW2208 2200 800 2160 795 6500 MXDW2209 2200 900 2160 895 6500 MXDW2210 2200 1000 2160 995DIMENSIONSH W A BNOMINAL DIMENSIONSH W A BNOMINALp.122 p.124 p.592 p.618 p.100 p.626Door RailsFor 180%u00b0 (up to 270%u00b0) hinging add suffix %u2018B%u2019 For LEFT side hinging add suffix %u2018L%u2019i.e.: 6500 MXDW1806B %uf0b0 Door with 180%u00b0 hinging on std right side 6500 MXDW1806L %uf0b0 Door with std hinging on LEFT side 6500 MXDW1806LB %uf0b0 Door with 180%u00b0 hinging on LEFT side 180%u00b0?p.120
