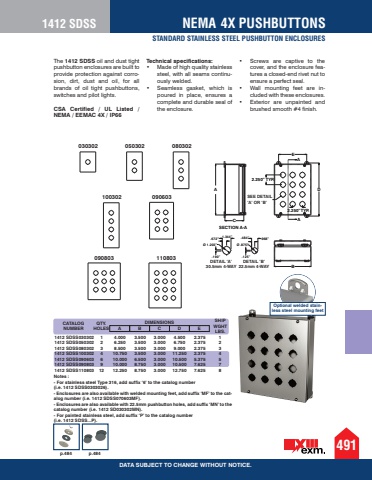

4911412 SDSS NEMA 4X PUSHBUTTONSDATA SUBJECT TO CHANGE WITHOUT NOTICE.p.484 p.484The 1412 SDSS oil and dust tight pushbutton enclosures are built to provide protection against corrosion, dirt, dust and oil, for all brands of oil tight pushbuttons, switches and pilot lights. CSA Certified / UL Listed / NEMA / EEMAC 4X / IP66 Technical specifications:%u2022 Made of high quality stainless steel, with all seams continuously welded. %u2022 Seamless gasket, which is poured in place, ensures a complete and durable seal of the enclosure. %u2022 Screws are captive to the cover, and the enclosure features a closed-end rivet nut to ensure a perfect seal. %u2022 Wall mounting feet are included with these enclosures. %u2022 Exterior are unpainted and brushed smooth #4 finish. 2.250%u201dTYP.2.250%u201d TYP. ..484%u201d .968%u201d.125%u201d%u00d8 .875%u201d.672%u201d%u00d8 1.203%u201d.190%u201d1.344%u201dAADEBCASECTION A-ASEE DETAIL%u2018A%u2019 OR %u2018B%u2019DETAIL %u2018A%u201930.5mm 4-WAYDETAIL %u2018B%u201922.5mm 4-WAY030302 050302 080302100302 090603090803 110803CATALOG NUMBER A B C D EDIMENSIONS SHIP WGHT LBS.1412 SDSS030302 1 4.000 3.500 3.000 4.500 2.375 1 1412 SDSS050302 2 6.250 3.500 3.000 6.750 2.375 2 1412 SDSS080302 3 8.500 3.500 3.000 9.000 2.375 3 1412 SDSS100302 4 10.750 3.500 3.000 11.250 2.375 4 1412 SDSS090603 6 10.000 6.500 3.000 10.500 5.375 5 1412 SDSS090803 9 10.000 8.750 3.000 10.500 7.625 7 1412 SDSS110803 12 12.250 8.750 3.000 12.750 7.625 8QTY. HOLESNotes : - For stainless steel Type 316, add suffix %u20186%u2019 to the catalog number (i.e. 1412 SDSS0303026). - Enclosures are also available with welded mounting feet, add suffix %u2018MF%u2019 to the catalog number (i.e. 1412 SDSS070603MF). - Enclosures are also available with 22.5mm pushbutton holes, add suffix %u2018MN%u2019 to the catalog number (i.e. 1412 SD030302MN). - For painted stainless steel, add suffix %u2018P%u2019 to the catalog number (i.e. 1412 SDSS...P).Optional welded stainless steel mounting feetSTANDARD STAINLESS STEEL PUSHBUTTON ENCLOSURES
