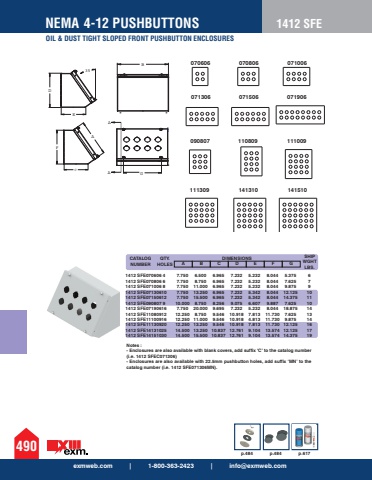

exmweb.com | 1-800-363-2423 | [email protected] 4-12 PUSHBUTTONSOIL & DUST TIGHT SLOPED FRONT PUSHBUTTON ENCLOSURES4901412 SFEp.484 p.484 p.617CATALOG NUMBER A B C D E F GDIMENSIONS SHIP WGHT LBS.QTY. HOLESNotes : - Enclosures are also available with blank covers, add suffix %u2018C%u2019 to the catalog number (i.e. 1412 SFEC071306) - Enclosures are also available with 22.5mm pushbutton holes, add suffix %u2018MN%u2019 to the catalog number (i.e. 1412 SFE071306MN).BACF35%u00b0EDAAG1412 SFE070606 4 7.750 6.500 6.965 7.232 5.232 8.044 5.375 6 1412 SFE070806 6 7.750 8.750 6.965 7.232 5.232 8.044 7.625 7 1412 SFE071006 8 7.750 11.000 6.965 7.232 5.232 8.044 9.875 9 1412 SFE07130610 7.750 13.250 6.965 7.232 5.342 8.044 12.125 10 1412 SFE07150612 7.750 15.500 6.965 7.232 5.342 8.044 14.375 11 1412 SFE090807 9 10.000 8.750 8.256 9.075 6.607 9.887 7.625 10 1412 SFE07190616 7.750 20.000 9.695 7.232 5.232 8.044 18.875 14 1412 SFE11080912 12.250 8.750 9.546 10.918 7.813 11.730 7.625 13 1412 SFE11100916 12.250 11.000 9.546 10.918 4.813 11.730 9.875 14 1412 SFE11130920 12.250 13.250 9.546 10.918 7.813 11.730 12.125 16 1412 SFE14131025 14.500 13.250 10.837 12.761 9.104 13.574 12.125 17 1412 SFE14151030 14.500 15.500 10.837 12.761 9.104 13.574 14.375 19 070606 070806 071006071306 071506 071906090807 110809 111009111309 141310 141510
