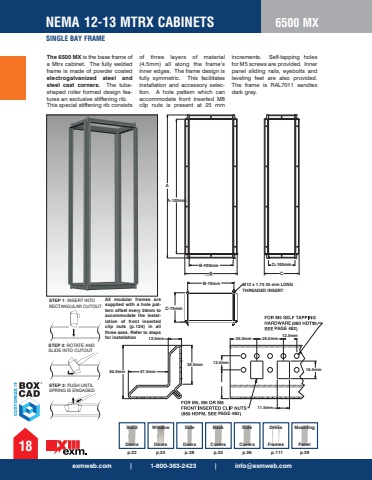

exmweb.com | 1-800-363-2423 | [email protected] 12-13 MTRX CABINETSSINGLE BAY FRAME186500 MXThe 6500 MX is the base frame of a Mtrx cabinet. The fully welded frame is made of powder coated electrogalvanized steel and steel cast corners. The tubeshaped roller formed design features an exclusive stiffening rib. This special stiffening rib consists of three layers of material (4.5mm) all along the frame%u2019s inner edges. The frame design is fully symmetric. This facilitates installation and accessory selection. A hole pattern which can accommodate front inserted M8 clip nuts is present at 25 mm increments. Self-tapping holes for M5 screws are provided. Inner panel sliding rails, eyebolts and leveling feet are also provided. The frame is RAL7011 sandtex dark gray.A-100mmAB-100mmBC-100mmCM12 x 1.75 25 mm LONGTHREADED INSERTB-75mmC-75mm10PAGE 482PAGE 48312.5mm50.0mm 37.5mm36.5mm 13.0mm25.0mm 25.0mm 12.5mm16.5mm11.5mmSTEP 1: INSERT INTORECTANGULAR CUTOUTSTEP 2: ROTATE ANDSLIDE INTO CUTOUTSTEP 3: PUSH UNTILSPRING IS ENGAGEDAll modular frames are supplied with a hole pattern offset every 25mm to accommodate the installation of front inserted clip nuts (p.124) in all three axes. Refer to steps for installation p.22 p.24 p.38 p.32 p.36 p.111 p.39Side CoversSolid DoorsWindow DoorsSide DoorsDress FramesMounting PanelBack Covers
