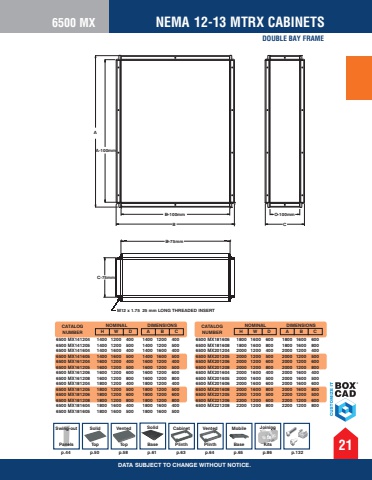

DOUBLE BAY FRAME6500 MX21NEMA 12-13 MTRX CABINETSDATA SUBJECT TO CHANGE WITHOUT NOTICE.CATALOG NUMBERDIMENSIONS6500 MX141204 1400 1200 400 1400 1200 400 6500 MX141205 1400 1200 500 1400 1200 500 6500 MX141604 1400 1600 400 1400 1600 400 6500 MX141605 1400 1600 500 1400 1600 500 6500 MX161204 1600 1200 400 1600 1200 400 6500 MX161205 1600 1200 500 1600 1200 500 6500 MX161206 1600 1200 600 1600 1200 600 6500 MX161208 1600 1200 800 1600 1200 800 6500 MX181204 1800 1200 400 1800 1200 400 6500 MX181205 1800 1200 500 1800 1200 500 6500 MX181206 1800 1200 600 1800 1200 600 6500 MX181208 1800 1200 800 1800 1200 800 6500 MX181604 1800 1600 400 1800 1600 400 6500 MX181605 1800 1600 500 1800 1600 500 CATALOG NUMBER6500 MX181606 1800 1600 600 1800 1600 600 6500 MX181608 1800 1600 800 1800 1600 800 6500 MX201204 2000 1200 400 2000 1200 400 6500 MX201205 2000 1200 500 2000 1200 500 6500 MX201206 2000 1200 600 2000 1200 600 6500 MX201208 2000 1200 800 2000 1200 800 6500 MX201604 2000 1600 400 2000 1600 400 6500 MX201605 2000 1600 500 2000 1600 500 6500 MX201606 2000 1600 600 2000 1600 600 6500 MX201608 2000 1600 800 2000 1600 800 6500 MX221205 2200 1200 500 2200 1200 500 6500 MX221206 2200 1200 600 2200 1200 600 6500 MX221208 2200 1200 800 2200 1200 800 H W D A B CNOMINAL DIMENSIONSH W D A B CNOMINALA-100mmAB-100mmBC-100mmCM12 x 1.75 25 mm LONG THREADED INSERTC-75mmB-75mmp.44 p.50 p.58 p.61 p.63 p.64 p.65 p.132Joining KitsSwing-out PanelsSolid BaseCabinet PlinthVented PlinthMobile BaseSolid TopVented Topp.86
