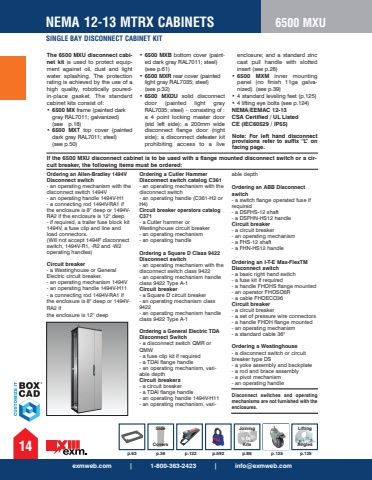

exmweb.com | 1-800-363-2423 | [email protected] 12-13 MTRX CABINETSSINGLE BAY DISCONNECT CABINET KIT146500 MXUThe 6500 MXU disconnect cabinet kit is used to protect equipment against oil, dust and light water splashing. The protection rating is achieved by the use of a high quality, robotically pouredin-place gasket. The standard cabinet kits consist of: %u2022 6500 MX frame (painted darkgray RAL7011; galvanized)(see p.18)%u2022 6500 MXT top cover (painteddark gray RAL7011; steel)(see p.50)%u2022 6500 MXB bottom cover (painted dark gray RAL7011; steel)(see p.61)%u2022 6500 MXR rear cover (paintedlight gray RAL7035; steel)(see p.32)%u2022 6500 MXDU solid disconnectdoor (painted light grayRAL7035; steel) %u2013 consisting of :a 4 point locking master door(std left side); a 200mm widedisconnect flange door (rightside); a disconnect defeater kitprohibiting access to a liveenclosure; and a standard zinc cast pull handle with slotted insert (see p.28) %u2022 6500 MXM inner mountingpanel (no finish 11ga galvanized) (see p.39)%u2022 4 standard leveling feet (p.125)%u2022 4 lifting eye bolts (see p.124)NEMA/EEMAC 12-13CSA Certified / UL ListedCE (IEC60529 / IP55)Note: For left hand disconnect provisions refer to suffix %u201cL%u201d on facing page. If the 6500 MXU disconnect cabinet is to be used with a flange mounted disconnect switch or a circuit breaker, the following items must be ordered: Disconnect switches and operating mechanisms are not furnished with the enclosures.Ordering an Allen-Bradley 1494V Disconnect switch- an operating mechanism with thedisconnect switch 1494V- an operating handle 1494V-H1- a connecting rod 1494V-RA1 ifthe enclosure is 8\RA2 if the enclosure is 12\- if required, a trailer fuse block kit1494V, a fuse clip and line andload connectors.(Will not accept 1494F disconnectswitch, 1494V-R1, -R2 and -W2operating handles)Circuit breaker - a Westinghouse or GeneralElectric circuit breaker.- an operating mechanism 1494V- an operating handle 1494V-H11- a connecting rod 1494V-RA1 ifthe enclosure is 8\RA2 ifthe enclosure is 12\Ordering a Cutler Hammer Disconnect switch catalog C361 - an operating mechanism with thedisconnect switch- an operating handle (C361-H2 orH4)Circuit breaker operators catalogC371- a Cutler hammer orWestinghouse circuit breaker- an operating mechanism- an operating handleOrdering a Square D Class 9422Disconnect switch - an operating mechanism with thedisconnect switch class 9422- an operating mechanism handleclass 9422 Type A-1Circuit breaker- a Square D circuit breaker- an operating mechanism class9422- an operating mechanism handleclass 9422 Type A-1Ordering a General Electric TDADisconnect Switch - a disconnect switch QMR orQMW- a fuse clip kit if required- a TDAI flange handle- an operating mechanism, variable depthCircuit breakers- a circuit breaker- a TDAI flange handle- an operating handle 1494V-H11- an operating mechanism, variable depth Ordering an ABB Disconnect switch- a switch flange operated fuse ifrequired- a DSFHS-12 shaft- a DSFHN-HS12 handleCircuit breaker- a circuit breaker- an operating mechanism- a FHS-12 shaft- a FHN-HS12 handleOrdering an I-T-E Max-FlexTM Disconnect switch - a basic right hand switch- a fuse kit if required- a handle FHOHS flange mounted- an operator FHOSO6R- a cable FHOECO36Circuit breaker- a circuit breaker- a set of pressure wire connectors- a handle FHOH flange mounted- an operating mechanism- a standard cable 36\Ordering a Westinghouse - a disconnect switch or circuitbreaker type DS- a yoke assembly and backplate- a rod and brace assembly- a pivot mechanism- an operating handlep.63 p.36 p.122 p.592 p.86 p.125 p.125Lifting AnglesJoining KitsSide Covers
