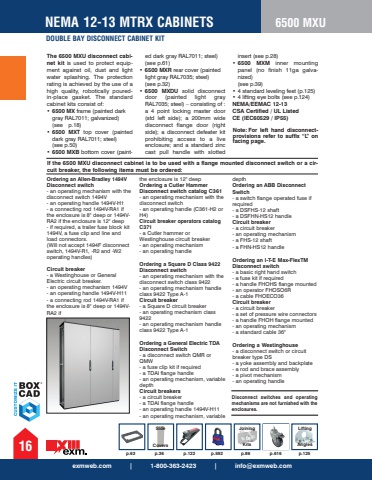

exmweb.com | 1-800-363-2423 | [email protected] 12-13 MTRX CABINETSDOUBLE BAY DISCONNECT CABINET KIT166500 MXUThe 6500 MXU disconnect cabinet kit is used to protect equipment against oil, dust and light water splashing. The protection rating is achieved by the use of a high quality, robotically pouredin-place gasket. The standard cabinet kits consist of: %u2022 6500 MX frame (painted dark gray RAL7011; galvanized) (see p.18) %u2022 6500 MXT top cover (painted dark gray RAL7011; steel) (see p.50) %u2022 6500 MXB bottom cover (painted dark gray RAL7011; steel) (see p.61) %u2022 6500 MXR rear cover (paintedlight gray RAL7035; steel) (see p.32) %u2022 6500 MXDU solid disconnect door (painted light gray RAL7035; steel) %u2013 consisting of : a 4 point locking master door (std left side); a 200mm wide disconnect flange door (right side); a disconnect defeater kit prohibiting access to a live enclosure; and a standard zinc cast pull handle with slotted insert (see p.28) %u2022 6500 MXM inner mounting panel (no finish 11ga galvanized) (see p.39) %u2022 4 standard leveling feet (p.125) %u2022 4 lifting eye bolts (see p.124) NEMA/EEMAC 12-13 CSA Certified / UL Listed CE (IEC60529 / IP55) Note: For left hand disconnectprovisions refer to suffix %u201cL%u201d on facing page. If the 6500 MXU disconnect cabinet is to be used with a flange mounted disconnect switch or a circuit breaker, the following items must be ordered: Disconnect switches and operating mechanisms are not furnished with the enclosures.Ordering an Allen-Bradley 1494V Disconnect switch- an operating mechanism with the disconnect switch 1494V - an operating handle 1494V-H1 - a connecting rod 1494V-RA1 if the enclosure is 8\RA2 if the enclosure is 12\- if required, a trailer fuse block kit 1494V, a fuse clip and line and load connectors. (Will not accept 1494F disconnect switch, 1494V-R1, -R2 and -W2 operating handles) Circuit breaker - a Westinghouse or General Electric circuit breaker. - an operating mechanism 1494V - an operating handle 1494V-H11 - a connecting rod 1494V-RA1 if the enclosure is 8\RA2 if the enclosure is 12\Ordering a Cutler Hammer Disconnect switch catalog C361 - an operating mechanism with the disconnect switch - an operating handle (C361-H2 or H4) Circuit breaker operators catalog C371 - a Cutler hammer or Westinghouse circuit breaker - an operating mechanism - an operating handle Ordering a Square D Class 9422Disconnect switch - an operating mechanism with the disconnect switch class 9422 - an operating mechanism handle class 9422 Type A-1 Circuit breaker - a Square D circuit breaker - an operating mechanism class 9422 - an operating mechanism handle class 9422 Type A-1 Ordering a General Electric TDADisconnect Switch - a disconnect switch QMR or QMW - a fuse clip kit if required - a TDAI flange handle - an operating mechanism, variable depth Circuit breakers - a circuit breaker - a TDAI flange handle - an operating handle 1494V-H11 - an operating mechanism, variable depth Ordering an ABB Disconnect Switch- a switch flange operated fuse if required - a DSFHS-12 shaft - a DSFHN-HS12 handle Circuit breaker - a circuit breaker - an operating mechanism - a FHS-12 shaft - a FHN-HS12 handle Ordering an I-T-E Max-FlexTM Disconnect switch - a basic right hand switch - a fuse kit if required - a handle FHOHS flange mounted - an operator FHOSO6R - a cable FHOECO36 Circuit breaker - a circuit breaker - a set of pressure wire connectors - a handle FHOH flange mounted - an operating mechanism - a standard cable 36\Ordering a Westinghouse - a disconnect switch or circuit breaker type DS - a yoke assembly and backplate - a rod and brace assembly - a pivot mechanism - an operating handle Lifting AnglesJoining KitsSide Coversp.63 p.36 p.122 p.592 p.86 p.616 p.125
