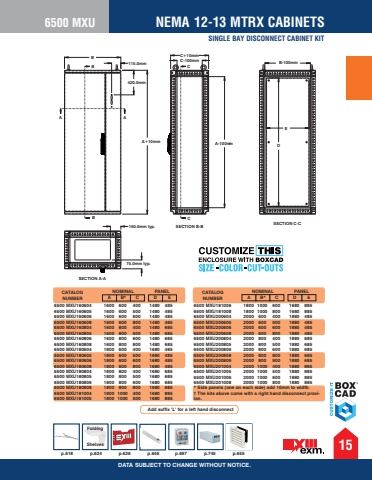

6500 MXU15NEMA 12-13 MTRX CABINETSDATA SUBJECT TO CHANGE WITHOUT NOTICE.CATALOG NUMBER6500 MXU160604 1600 600 400 1480 485 6500 MXU160605 1600 600 500 1480 485 6500 MXU160606 1600 600 600 1480 485 6500 MXU160608 1600 600 800 1480 485 6500 MXU160804 1600 800 400 1480 685 6500 MXU160805 1600 800 500 1480 685 6500 MXU160806 1600 800 600 1480 685 6500 MXU160808 1600 800 800 1480 685 6500 MXU180604 1800 600 400 1680 485 6500 MXU180605 1800 600 500 1680 485 6500 MXU180606 1800 600 600 1680 485 6500 MXU180608 1800 600 800 1680 485 6500 MXU180804 1800 800 400 1680 685 6500 MXU180805 1800 800 500 1680 685 6500 MXU180806 1800 800 600 1680 685 6500 MXU180808 1800 800 800 1680 685 6500 MXU181004 1800 1000 400 1680 885 6500 MXU181005 1800 1000 500 1680 885 CATALOG NUMBER6500 MXU181006 1800 1000 600 1680 885 6500 MXU181008 1800 1000 800 1680 885 6500 MXU200604 2000 600 400 1880 485 6500 MXU200605 2000 600 500 1880 485 6500 MXU200606 2000 600 600 1880 485 6500 MXU200608 2000 600 800 1880 485 6500 MXU200804 2000 800 400 1880 685 6500 MXU200805 2000 800 500 1880 685 6500 MXU200806 2000 800 600 1880 685 6500 MXU200808 2000 800 800 1880 685 6500 MXU200809 2000 800 900 1880 685 6500 MXU201004 2000 1000 400 1880 885 6500 MXU201005 2000 1000 500 1880 885 6500 MXU201006 2000 1000 600 1880 885 6500 MXU201008 2000 1000 800 1880 885 * Side panels (one on each side) add 10mm to width.%u2020 The kits above come with a right hand disconnect proviion.NOMINAL PANEL NOMINAL PANELp.618 p.624 p.626 p.646 p.697 p.745 p.655Folding ShelvesBB 115.0mm420.0mmA AA+10mm150.0mm typ.75.0mm typ.SECTION A-AC+10mmC-100mmCA-100mmSECTION B-BBB-100mmEDSECTION C-CCA B* C D E A B* C D E Add suffix %u2018L%u2019 for a left hand disconnectSINGLE BAY DISCONNECT CABINET KIT
