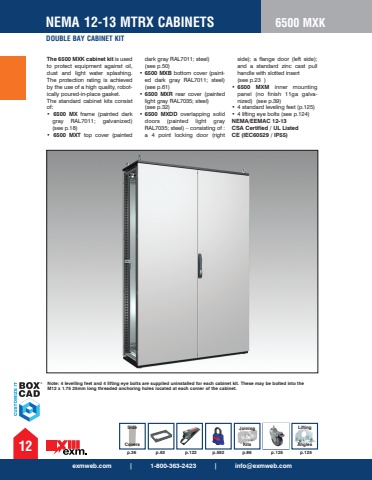

exmweb.com | 1-800-363-2423 | [email protected] 12-13 MTRX CABINETSDOUBLE BAY CABINET KIT126500 MXKThe 6500 MXK cabinet kit is used to protect equipment against oil, dust and light water splashing. The protection rating is achieved by the use of a high quality, robotically poured-in-place gasket. The standard cabinet kits consist of: %u2022 6500 MX frame (painted dark gray RAL7011; galvanized) (see p.18) %u2022 6500 MXT top cover (painted dark gray RAL7011; steel) (see p.50) %u2022 6500 MXB bottom cover (painted dark gray RAL7011; steel) (see p.61) %u2022 6500 MXR rear cover (painted light gray RAL7035; steel) (see p.32) %u2022 6500 MXDD overlapping solid doors (painted light gray RAL7035; steel) %u2013 consisting of : a 4 point locking door (right side); a flange door (left side); and a standard zinc cast pull handle with slotted insert (see p.23 ) %u2022 6500 MXM inner mounting panel (no finish 11ga galvanized) (see p.39) %u2022 4 standard leveling feet (p.125) %u2022 4 lifting eye bolts (see p.124) NEMA/EEMAC 12-13 CSA Certified / UL Listed CE (IEC60529 / IP55)p.122 p.592 p.86 p.125 p.125Lifting AnglesJoining KitsNote: 4 levelling feet and 4 lifting eye bolts are supplied uninstalled for each cabinet kit. These may be bolted into the M12 x 1.75 25mm long threaded anchoring holes located at each corner of the cabinet.p.36 p.63Side Covers
