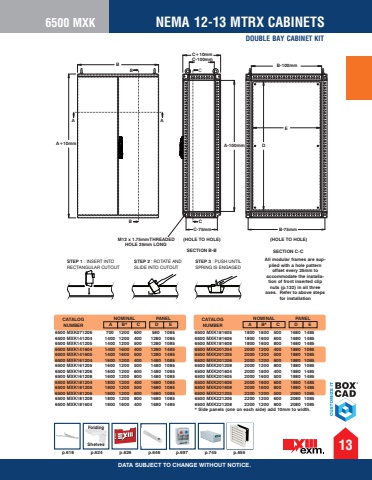

DOUBLE BAY CABINET KIT6500 MXK13NEMA 12-13 MTRX CABINETSDATA SUBJECT TO CHANGE WITHOUT NOTICE.6500 MXK071206 700 1200 600 580 1085 6500 MXK141204 1400 1200 400 1280 1085 6500 MXK141205 1400 1200 500 1280 1085 6500 MXK141604 1400 1600 400 1280 1485 6500 MXK141605 1400 1600 500 1280 1485 6500 MXK161204 1600 1200 400 1480 1085 6500 MXK161205 1600 1200 500 1480 1085 6500 MXK161206 1600 1200 600 1480 1085 6500 MXK161208 1600 1200 800 1480 1085 6500 MXK181204 1800 1200 400 1680 1085 6500 MXK181205 1800 1200 500 1680 1085 6500 MXK181206 1800 1200 600 1680 1085 6500 MXK181208 1800 1200 800 1680 1085 6500 MXK181604 1800 1600 400 1680 1485 6500 MXK181605 1800 1600 500 1680 1485 6500 MXK181606 1800 1600 600 1680 1485 6500 MXK181608 1800 1600 800 1680 1485 6500 MXK201204 2000 1200 400 1880 1085 6500 MXK201205 2000 1200 500 1880 1085 6500 MXK201206 2000 1200 600 1880 1085 6500 MXK201208 2000 1200 800 1880 1085 6500 MXK201604 2000 1600 400 1880 1485 6500 MXK201605 2000 1600 500 1880 1485 6500 MXK201606 2000 1600 600 1880 1485 6500 MXK201608 2000 1600 800 1880 1485 6500 MXK221205 2200 1200 500 2080 1085 6500 MXK221206 2200 1200 600 2080 1085 6500 MXK221208 2200 1200 800 2080 1085 * Side panels (one on each side) add 10mm to width.CATALOG NUMBERPANEL CATALOG A B* C D E NUMBERNOMINAL PANELA B* C D ENOMINALp.618 p.624 p.626 p.646 p.697 p.745 p.655Folding ShelvesC-75mm B-75mmSECTION B-B SECTION C-CBA+10mmA ABBC+10mmC-100mmCB-100mmA-100mm DECM12 x 1.75mmTHREADED (HOLE TO HOLE) (HOLE TO HOLE)HOLE 25mm LONGSTEP 1 : INSERT INTORECTANGULAR CUTOUTSTEP 2 : ROTATE ANDSLIDE INTO CUTOUTSTEP 3 : PUSH UNTILSPRING IS ENGAGEDAll modular frames are supplied with a hole pattern offset every 25mm to accommodate the installation of front inserted clip nuts (p.132) in all three axes. Refer to above steps for installation
