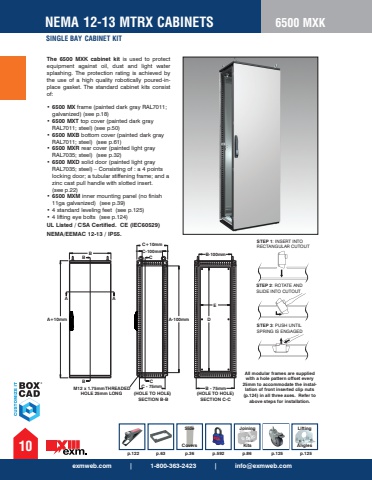

exmweb.com | 1-800-363-2423 | [email protected] 12-13 MTRX CABINETSSINGLE BAY CABINET KIT106500 MXKp.122 p.63 p.36 p.592 p.86 p.125 p.125The 6500 MXK cabinet kit is used to protect equipment against oil, dust and light water splashing. The protection rating is achieved by the use of a high quality robotically poured-inplace gasket. The standard cabinet kits consist of: %u2022 6500 MX frame (painted dark gray RAL7011;galvanized) (see p.18)%u2022 6500 MXT top cover (painted dark grayRAL7011; steel) (see p.50)%u2022 6500 MXB bottom cover (painted dark grayRAL7011; steel) (see p.61)%u2022 6500 MXR rear cover (painted light grayRAL7035; steel) (see p.32)%u2022 6500 MXD solid door (painted light grayRAL7035; steel) %u2013 Consisting of : a 4 pointslocking door; a tubular stiffening frame; and azinc cast pull handle with slotted insert.(see p.22)%u2022 6500 MXM inner mounting panel (no finish11ga galvanized) (see p.39)%u2022 4 standard leveling feet (see p.125)%u2022 4 lifting eye bolts (see p.124)UL Listed / CSA Certified. CE (IEC60529)NEMA/EEMAC 12-13 / IP55.C - 75mm B - 75mmB CA+10mmA ABBC+10mmC-100mmCA-100mm DEB-100mmSECTION B-B SECTION C-C(HOLE TO HOLE) (HOLE TO HOLE)M12 x 1.75mmTHREADEDHOLE 25mm LONGSTEP 1: INSERT INTORECTANGULAR CUTOUTSTEP 2: ROTATE ANDSLIDE INTO CUTOUTSTEP 3: PUSH UNTILSPRING IS ENGAGEDAll modular frames are supplied with a hole pattern offset every 25mm to accommodate the installation of front inserted clip nuts (p.124) in all three axes. Refer to above steps for installation.Side CoversJoining KitsLifting Angles
