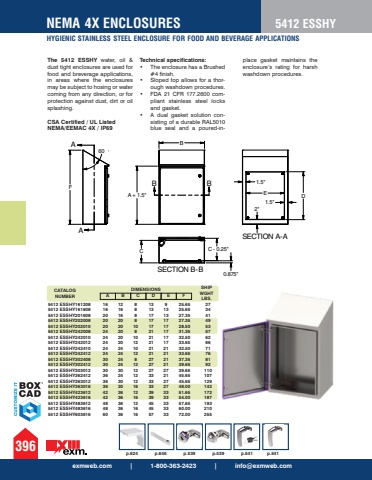

exmweb.com | 1-800-363-2423 | [email protected] 5412 ESSHY water, oil & dust tight enclosures are used for food and breverage applications, in areas where the enclosures may be subject to hosing or water coming from any direction, or for protection against dust, dirt or oil splashing. CSA Certified / UL Listed NEMA/EEMAC 4X / IP69 Technical specifications: %u2022 The enclosure has a Brushed#4 finish.%u2022 Sloped top allows for a thorough washdown procedures.%u2022 FDA 21 CFR 177.2600 compliant stainless steel locksand gasket.%u2022 A dual gasket solution consisting of a durable RAL5010blue seal and a poured-inplace gasket maintains the enclosure%u2019s rating for harsh washdown procedures.p.624 p.646 p.539 p.539 p.541 p.541CATALOG NUMBER A B C D E FDIMENSIONS SHIP WGHT LBS.5412 ESSHY161208 16 12 8 13 9 25.65 27 5412 ESSHY161608 16 16 8 13 13 25.65 34 5412 ESSHY201608 20 16 8 17 13 27.35 41 5412 ESSHY202008 20 20 8 17 17 27.35 49 5412 ESSHY202010 20 20 10 17 17 28.50 53 5412 ESSHY242008 24 20 8 21 17 31.35 57 5412 ESSHY242010 24 20 10 21 17 32.50 62 5412 ESSHY242012 24 20 12 21 17 33.65 66 5412 ESSHY242410 24 24 10 21 21 32.50 71 5412 ESSHY242412 24 24 12 21 21 33.65 76 5412 ESSHY302408 30 24 8 27 21 37.35 81 5412 ESSHY302412 30 24 12 27 21 39.65 92 5412 ESSHY303012 30 30 12 27 27 39.65 110 5412 ESSHY362412 36 24 12 33 21 45.65 107 5412 ESSHY363012 36 30 12 33 27 45.65 129 5412 ESSHY363016 36 30 16 33 27 48.00 142 5412 ESSHY423612 42 36 12 39 33 51.65 172 5412 ESSHY423616 42 36 16 39 33 54.00 187 5412 ESSHY483612 48 36 12 45 33 57.65 193 5412 ESSHY483616 48 36 16 45 33 60.00 210 5412 ESSHY603616 60 36 16 57 33 72.00 255 NEMA 4X ENCLOSURESHYGIENIC STAINLESS STEEL ENCLOSURE FOR FOOD AND BEVERAGE APPLICATIONS5412 ESSHYSECTION A-ASECTION B-BAAB BA + 1.5\0.875\C - 0.25\D E1.5\1.5\2\BCF60 %u2018
