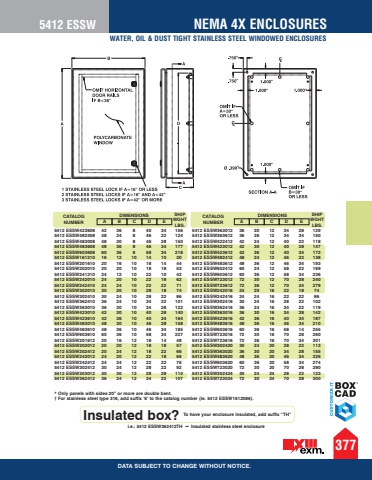

%u201d%u201d%u201d%u201d %u201d%u201d%u201d%u201d%u201d* Only panels with sides 20%u201d or more are double bent.%u2020 For stainless steel type 316, add suffix %u20186%u2019 to the catalog number (ie. 5412 ESSW1612086).CATALOG NUMBER A B C D EDIMENSIONS SHIP WGHT LBS.5412 ESSW423608 42 36 8 40 34 156 5412 ESSW482408 48 24 8 46 22 124 5412 ESSW483008 48 30 8 46 28 150 5412 ESSW483608 48 36 8 46 34 177 5412 ESSW603608 60 36 8 58 34 218 5412 ESSW161210 16 12 10 14 10 30 5412 ESSW201610 20 16 10 18 14 44 5412 ESSW202010 20 20 10 18 18 53 5412 ESSW241210 24 12 10 22 10 42 5412 ESSW242010 24 20 10 22 18 62 5412 ESSW242410 24 24 10 22 22 71 5412 ESSW302010 30 20 10 28 18 74 5412 ESSW302410 30 24 10 28 22 86 5412 ESSW362410 36 24 10 34 22 101 5412 ESSW363010 36 30 10 34 28 122 5412 ESSW423010 42 30 10 40 28 140 5412 ESSW423610 42 36 10 40 34 164 5412 ESSW483010 48 30 10 46 28 158 5412 ESSW483610 48 36 10 46 34 185 5412 ESSW603610 60 36 10 58 34 227 5412 ESSW201612 20 16 12 18 14 48 5412 ESSW202012 20 20 12 18 18 57 5412 ESSW202412 20 24 12 18 22 66 5412 ESSW242012 24 20 12 22 18 66 5412 ESSW242412 24 24 12 22 22 76 5412 ESSW302412 30 24 12 28 22 92 5412 ESSW303012 30 30 12 28 28 110 5412 ESSW362412 36 24 12 34 22 107 5412 ESSW363012 36 30 12 34 28 129 5412 ESSW363612 36 36 12 34 34 150 5412 ESSW422412 42 24 12 40 22 118 5412 ESSW423012 42 30 12 40 28 147 5412 ESSW423612 42 36 12 40 34 172 5412 ESSW482412 48 24 12 46 22 138 5412 ESSW483612 48 36 12 46 34 193 5412 ESSW602412 60 24 12 58 22 169 5412 ESSW603612 60 36 12 58 34 236 5412 ESSW723012 72 30 12 70 28 240 5412 ESSW723612 72 36 12 70 34 279 5412 ESSW242016 24 20 16 22 18 74 5412 ESSW242416 24 24 16 22 22 86 5412 ESSW302416 30 24 16 28 22 102 5412 ESSW362416 36 24 16 34 22 119 5412 ESSW363016 36 30 16 34 28 142 5412 ESSW423616 42 36 16 40 34 187 5412 ESSW483616 48 36 16 46 34 210 5412 ESSW603616 60 36 16 58 14 255 5412 ESSW723016 72 30 16 70 28 260 5412 ESSW723616 72 36 16 70 34 301 5412 ESSW302420 30 24 20 28 22 113 5412 ESSW363020 36 30 20 34 28 155 5412 ESSW483620 48 36 20 46 34 226 5412 ESSW603620 60 36 20 58 34 274 5412 ESSW723020 72 30 20 70 28 280 5412 ESSW302424 30 24 24 28 22 123 5412 ESSW723024 72 30 24 70 28 300CATALOG NUMBER A B C D EDIMENSIONS SHIP WGHT LBS.i.e.: 5412 ESSW362412TH %uf0b0 Insulated stainless steel enclosureInsulated box? To have your enclosure insulated, add suffix %u201cTH%u201d5412 ESSWDATA SUBJECT TO CHANGE WITHOUT NOTICE.NEMA 4X ENCLOSURES377WATER, OIL & DUST TIGHT STAINLESS STEEL WINDOWED ENCLOSURES
