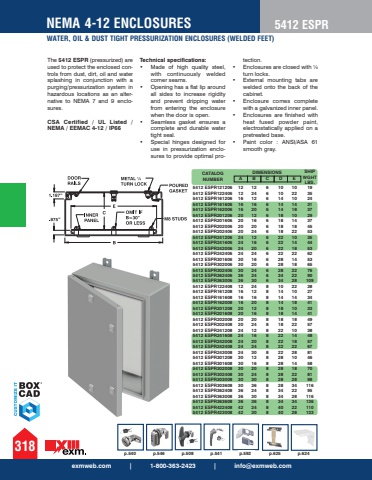

p.625 p.624The 5412 ESPR (pressurized) are used to protect the enclosed controls from dust, dirt, oil and water splashing in conjunction with a purging/pressurization system in hazardous locations as an alternative to NEMA 7 and 9 enclosures. CSA Certified / UL Listed / NEMA / EEMAC 4-12 / IP66Technical specifications:%u2022 Made of high quality steel,with continuously weldedcorner seams.%u2022 Opening has a flat lip aroundall sides to increase rigidityand prevent dripping waterfrom entering the enclosurewhen the door is open.%u2022 Seamless gasket ensures acomplete and durable watertight seal.%u2022 Special hinges designed foruse in pressurization enclosures to provide optimal protection. %u2022 Enclosures are closed with %u00bcturn locks.%u2022 External mounting tabs arewelded onto the back of thecabinet.%u2022 Enclosure comes completewith a galvanized inner panel.%u2022 Enclosures are finished withheat fused powder paint,electrostatically applied on apretreated base.%u2022 Paint color : ANSI/ASA 61smooth gray.%u201d%u201dexmweb.com | 1-800-363-2423 | [email protected] NUMBER A B C D EDIMENSIONS SHIP WGHT LBS.5412 ESPR121206 12 12 6 10 10 19 5412 ESPR122406 12 24 6 10 22 35 5412 ESPR161206 16 12 6 14 10 24 5412 ESPR161606 16 16 6 14 14 31 5412 ESPR162006 16 20 6 14 18 37 5412 ESPR201206 20 12 6 18 10 29 5412 ESPR201606 20 16 6 18 14 37 5412 ESPR202006 20 20 6 18 18 45 5412 ESPR202406 20 24 6 18 22 53 5412 ESPR241206 24 12 6 22 10 35 5412 ESPR241606 24 16 6 22 14 44 5412 ESPR242006 24 20 6 22 18 53 5412 ESPR242406 24 24 6 22 22 62 5412 ESPR301606 30 16 6 28 14 53 5412 ESPR302006 30 20 6 28 18 65 5412 ESPR302406 30 24 6 28 22 76 5412 ESPR362406 36 24 6 34 22 90 5412 ESPR363006 36 30 6 34 28 109 5412 ESPR122408 12 24 8 10 22 38 5412 ESPR161208 16 12 8 14 10 27 5412 ESPR161608 16 16 8 14 14 34 5412 ESPR162008 16 20 8 14 18 41 5412 ESPR201208 20 12 8 18 10 33 5412 ESPR201608 20 16 8 18 14 41 5412 ESPR202008 20 20 8 18 18 49 5412 ESPR202408 20 24 8 18 22 57 5412 ESPR241208 24 12 8 22 10 38 5412 ESPR241608 24 16 8 22 14 48 5412 ESPR242008 24 20 8 22 18 57 5412 ESPR242408 24 24 8 22 22 67 5412 ESPR243008 24 30 8 22 28 81 5412 ESPR301208 30 12 8 28 10 46 5412 ESPR301608 30 16 8 28 14 58 5412 ESPR302008 30 20 8 28 18 70 5412 ESPR302408 30 24 8 28 22 81 5412 ESPR303008 30 30 8 28 28 98 5412 ESPR303608 30 36 8 28 34 116 5412 ESPR362408 36 24 8 34 22 95 5412 ESPR363008 36 30 8 34 28 116 5412 ESPR363608 36 36 8 34 34 136 5412 ESPR422408 42 24 8 40 22 110 5412 ESPR423008 42 30 8 40 28 133 NEMA 4-12 ENCLOSURESWATER, OIL & DUST TIGHT PRESSURIZATION ENCLOSURES (WELDED FEET)5412 ESPRp.540 p.546 p.508 p.541 p.592
