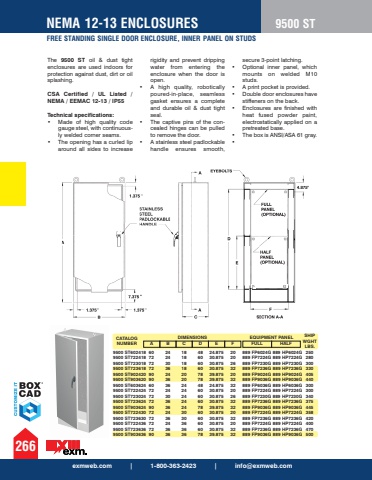

NEMA 12-13 ENCLOSURESFREE STANDING SINGLE DOOR ENCLOSURE, INNER PANEL ON STUDS9500 STThe 9500 ST oil & dust tight enclosures are used indoors for protection against dust, dirt or oil splashing. CSA Certified / UL Listed / NEMA / EEMAC 12-13 / IP55 Technical specifications:%u2022 Made of high quality code gauge steel, with continuously welded corner seams. %u2022 The opening has a curled lip around all sides to increase rigidity and prevent dripping water from entering the enclosure when the door is open. %u2022 A high quality, robotically poured-in-place, seamless gasket ensures a complete and durable oil & dust tight seal. %u2022 The captive pins of the concealed hinges can be pulled to remove the door. %u2022 A stainless steel padlockable handle ensures smooth, secure 3-point latching. %u2022 Optional inner panel, which mounts on welded M10 studs. %u2022 A print pocket is provided. %u2022 Double door enclosures have stiffeners on the back. %u2022 Enclosures are finished with heat fused powder paint, electrostatically applied on a pretreated base. %u2022 The box is ANSI/ASA 61 gray. %u2022exmweb.com | 1-800-363-2423 | [email protected] NUMBER A B C D E FDIMENSIONS SHIP WGHT LBS. FULL HALFEQUIPMENT PANEL9500 ST602418 60 24 18 48 24.875 20 889 FP6024G 889 HP6024G 250 9500 ST722418 72 24 18 60 30.875 20 889 FP7224G 889 HP7224G 280 9500 ST723018 72 30 18 60 30.875 26 889 FP7230G 889 HP7230G 300 9500 ST723618 72 36 18 60 30.875 32 889 FP7236G 889 HP7236G 330 9500 ST902420 90 24 20 78 39.875 20 889 FP9024G 889 HP9024G 405 9500 ST903620 90 36 20 78 39.875 32 889 FP9036G 889 HP9036G 440 9500 ST603624 60 36 24 48 24.875 32 889 FP6036G 889 HP6036G 300 9500 ST722424 72 24 24 60 30.875 20 889 FP7224G 889 HP7224G 300 9500 ST723024 72 30 24 60 30.875 26 889 FP7230G 889 HP7230G 340 9500 ST723624 72 36 24 60 30.875 32 889 FP7236G 889 HP7236G 375 9500 ST903624 90 36 24 78 39.875 32 889 FP9036G 889 HP9036G 445 9500 ST722430 72 24 30 60 30.875 20 889 FP7224G 889 HP7224G 358 9500 ST723630 72 36 30 60 30.875 32 889 FP7236G 889 HP7236G 420 9500 ST722436 72 24 36 60 30.875 20 889 FP7224G 889 HP7224G 400 9500 ST723636 72 36 36 60 30.875 32 889 FP7236G 889 HP7236G 470 9500 ST903636 90 36 36 78 39.875 32 889 FP9036G 889 HP9036G 500
