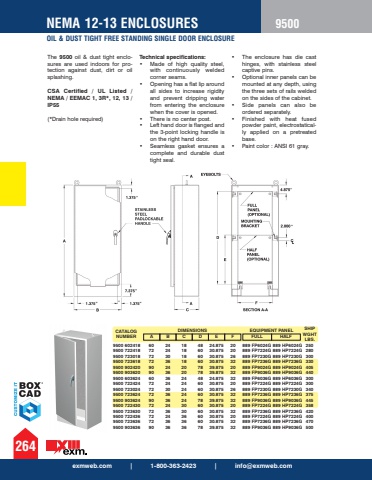

exmweb.com | 1-800-363-2423 | [email protected] 12-13 ENCLOSURESOIL & DUST TIGHT FREE STANDING SINGLE DOOR ENCLOSURE2649500The 9500 oil & dust tight enclosures are used indoors for protection against dust, dirt or oil splashing. CSA Certified / UL Listed / NEMA / EEMAC 1, 3R*, 12, 13 / IP55 (*Drain hole required)Technical specifications:%u2022 Made of high quality steel, with continuously welded corner seams. %u2022 Opening has a flat lip around all sides to increase rigidity and prevent dripping water from entering the enclosure when the cover is opened. %u2022 There is no center post. %u2022 Left hand door is flanged and the 3-point locking handle is on the right hand door. %u2022 Seamless gasket ensures a complete and durable dust tight seal. %u2022 The enclosure has die cast hinges, with stainless steel captive pins. %u2022 Optional inner panels can be mounted at any depth, using the three sets of rails welded on the sides of the cabinet. %u2022 Side panels can also be ordered separately. %u2022 Finished with heat fused powder paint, electrostatically applied on a pretreated base. %u2022 Paint color : ANSI 61 gray.CATALOG NUMBER A B C D E FDIMENSIONS SHIP WGHT LBS. FULL HALFEQUIPMENT PANEL9500 602418 60 24 18 48 24.875 20 889 FP6024G 889 HP6024G 250 9500 722418 72 24 18 60 30.875 20 889 FP7224G 889 HP7224G 280 9500 723018 72 30 18 60 30.875 26 889 FP7230G 889 HP7230G 300 9500 723618 72 36 18 60 30.875 32 889 FP7236G 889 HP7236G 330 9500 902420 90 24 20 78 39.875 20 889 FP9024G 889 HP9024G 405 9500 903620 90 36 20 78 39.875 32 889 FP9036G 889 HP9036G 440 9500 603624 60 36 24 48 24.875 32 889 FP6036G 889 HP6036G 300 9500 722424 72 24 24 60 30.875 20 889 FP7224G 889 HP7224G 300 9500 723024 72 30 24 60 30.875 26 889 FP7230G 889 HP7230G 340 9500 723624 72 36 24 60 30.875 32 889 FP7236G 889 HP7236G 375 9500 903624 90 36 24 78 39.875 32 889 FP9036G 889 HP9036G 445 9500 722430 72 24 30 60 30.875 20 889 FP7224G 889 HP7224G 358 9500 723630 72 36 30 60 30.875 32 889 FP7236G 889 HP7236G 420 9500 722436 72 24 36 60 30.875 20 889 FP7224G 889 HP7224G 400 9500 723636 72 36 36 60 30.875 32 889 FP7236G 889 HP7236G 470 9500 903636 90 36 36 78 39.875 32 889 FP9036G 889 HP9036G 500
