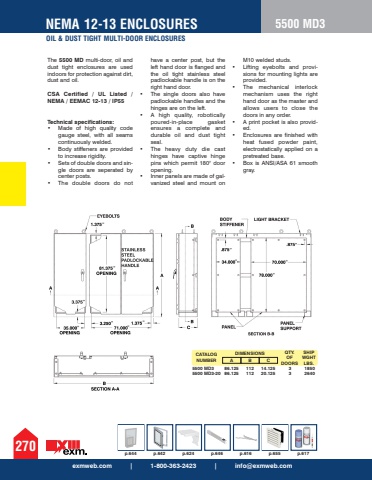

exmweb.com | 1-800-363-2423 | [email protected] 12-13 ENCLOSURESOIL & DUST TIGHT MULTI-DOOR ENCLOSURES2705500 MD3p.644 p.642 p.624 p.646 p.616 p.655 p.617CATALOG NUMBER A B CDIMENSIONS SHIP WGHT LBS.QTY. OF DOORS5500 MD3 86.125 112 14.125 3 1850 5500 MD3-20 86.125 112 20.125 3 2640The 5500 MD multi-door, oil and dust tight enclosures are used indoors for protection against dirt, dust and oil. CSA Certified / UL Listed / NEMA / EEMAC 12-13 / IP55Technical specifications: %u2022 Made of high quality code gauge steel, with all seams continuously welded. %u2022 Body stiffeners are provided to increase rigidity. %u2022 Sets of double doors and single doors are seperated by center posts. %u2022 The double doors do not have a center post, but the left hand door is flanged and the oil tight stainless steel padlockable handle is on the right hand door. %u2022 The single doors also have padlockable handles and the hinges are on the left. %u2022 A high quality, robotically poured-in-place gasket ensures a complete and durable oil and dust tight seal. %u2022 The heavy duty die cast hinges have captive hinge pins which permit 180%u00b0 door opening. %u2022 Inner panels are made of galvanized steel and mount on M10 welded studs. %u2022 Lifting eyebolts and provisions for mounting lights are provided. %u2022 The mechanical interlock mechanism uses the right hand door as the master and allows users to close the doors in any order. %u2022 A print pocket is also provided. %u2022 Enclosures are finished with heat fused powder paint, electrostatically applied on a pretreated base. %u2022 Box is ANSI/ASA 61 smooth gray.
