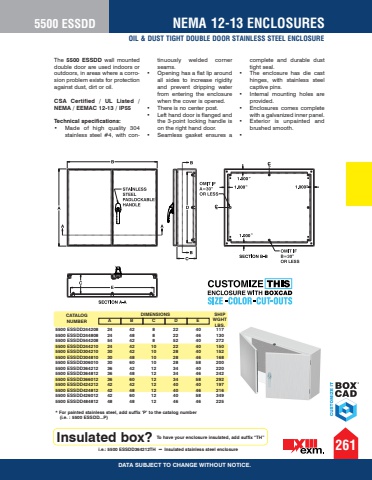

5500 ESSDD261NEMA 12-13 ENCLOSURESDATA SUBJECT TO CHANGE WITHOUT NOTICE.The 5500 ESSDD wall mounted double door are used indoors or outdoors, in areas where a corrosion problem exists for protection against dust, dirt or oil. CSA Certified / UL Listed / NEMA / EEMAC 12-13 / IP55Technical specifications: %u2022 Made of high quality 304stainless steel #4, with continuously welded corner seams. %u2022 Opening has a flat lip aroundall sides to increase rigidityand prevent dripping waterfrom entering the enclosurewhen the cover is opened.%u2022 There is no center post.%u2022 Left hand door is flanged andthe 3-point locking handle ison the right hand door.%u2022 Seamless gasket ensures acomplete and durable dust tight seal. %u2022 The enclosure has die casthinges, with stainless steelcaptive pins.%u2022 Internal mounting holes areprovided.%u2022 Enclosures comes completewith a galvanized inner panel.%u2022 Exterior is unpainted andbrushed smooth.%u2022CATALOG NUMBER A B C D EDIMENSIONS SHIP WGHT LBS.5500 ESSDD244208 24 42 8 22 40 117 5500 ESSDD244808 24 48 8 22 46 130 5500 ESSDD544208 54 42 8 52 40 272 5500 ESSDD244210 24 42 10 22 40 150 5500 ESSDD304210 30 42 10 28 40 152 5500 ESSDD304810 30 48 10 28 46 168 5500 ESSDD306010 30 60 10 28 58 200 5500 ESSDD364212 36 42 12 34 40 220 5500 ESSDD364812 36 48 12 34 46 242 5500 ESSDD366012 36 60 12 34 58 292 5500 ESSDD424212 42 42 12 40 40 197 5500 ESSDD424812 42 48 12 40 46 216 5500 ESSDD426012 42 60 12 40 58 349 5500 ESSDD484812 48 48 12 46 46 225 * For painted stainless steel, add suffix %u2018P%u2019 to the catalog number(i.e. : 5500 ESSDD...P)i.e.: 5500 ESSDD364212TH %uf0b0 Insulated stainless steel enclosureInsulated box? To have your enclosure insulated, add suffix %u201cTH%u201dOIL & DUST TIGHT DOUBLE DOOR STAINLESS STEEL ENCLOSURE
