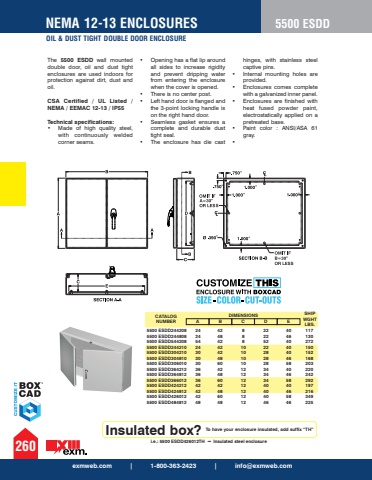

exmweb.com | 1-800-363-2423 | [email protected] 12-13 ENCLOSURESOIL & DUST TIGHT DOUBLE DOOR ENCLOSURE2605500 ESDDThe 5500 ESDD wall mounted double door, oil and dust tight enclosures are used indoors for protection against dirt, dust and oil. CSA Certified / UL Listed / NEMA / EEMAC 12-13 / IP55 Technical specifications:%u2022 Made of high quality steel,with continuously weldedcorner seams.%u2022 Opening has a flat lip aroundall sides to increase rigidityand prevent dripping waterfrom entering the enclosurewhen the cover is opened.%u2022 There is no center post.%u2022 Left hand door is flanged andthe 3-point locking handle ison the right hand door.%u2022 Seamless gasket ensures acomplete and durable dusttight seal.%u2022 The enclosure has die casthinges, with stainless steel captive pins. %u2022 Internal mounting holes areprovided.%u2022 Enclosures comes completewith a galvanized inner panel.%u2022 Enclosures are finished withheat fused powder paint,electrostatically applied on apretreated base.%u2022 Paint color : ANSI/ASA 61gray.%u2022CATALOG NUMBER A B C D EDIMENSIONS SHIP WGHT LBS.5500 ESDD244208 24 42 8 22 40 1175500 ESDD244808 24 48 8 22 46 1305500 ESDD544208 54 42 8 52 40 2725500 ESDD244210 24 42 10 22 40 1505500 ESDD304210 30 42 10 28 40 1525500 ESDD304810 30 48 10 28 46 1685500 ESDD306010 30 60 10 28 58 2035500 ESDD364212 36 42 12 34 40 2205500 ESDD364812 36 48 12 34 46 2425500 ESDD366012 36 60 12 34 58 2925500 ESDD424212 42 42 12 40 40 1975500 ESDD424812 42 48 12 40 46 2165500 ESDD426012 42 60 12 40 58 3495500 ESDD484812 48 48 12 46 46 225i.e.: 5500 ESDD426012TH %uf0b0 Insulated steel enclosureInsulated box? To have your enclosure insulated, add suffix %u201cTH%u201d
