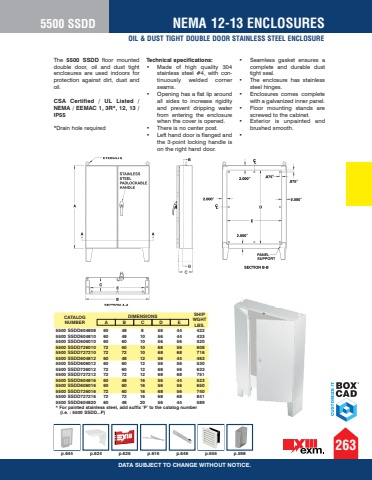

5500 SSDD263NEMA 12-13 ENCLOSURESDATA SUBJECT TO CHANGE WITHOUT NOTICE.The 5500 SSDD floor mounted double door, oil and dust tight enclosures are used indoors for protection against dirt, dust and oil. CSA Certified / UL Listed / NEMA / EEMAC 1, 3R*, 12, 13 / IP55 *Drain hole required Technical specifications: %u2022 Made of high quality 304 stainless steel #4, with continuously welded corner seams. %u2022 Opening has a flat lip around all sides to increase rigidity and prevent dripping water from entering the enclosure when the cover is opened. %u2022 There is no center post. %u2022 Left hand door is flanged and the 3-point locking handle is on the right hand door. %u2022 Seamless gasket ensures a complete and durable dust tight seal. %u2022 The enclosure has stainless steel hinges. %u2022 Enclosures comes complete with a galvanized inner panel. %u2022 Floor mounting stands are screwed to the cabinet. %u2022 Exterior is unpainted and brushed smooth. %u2022CATALOG NUMBER A B C D EDIMENSIONS SHIP WGHT LBS.5500 SSDD604808 60 48 8 56 44 422 5500 SSDD604810 60 48 10 56 44 433 5500 SSDD606010 60 60 10 56 56 520 5500 SSDD726010 72 60 10 68 56 608 5500 SSDD727210 72 72 10 68 68 716 5500 SSDD604812 60 48 12 56 44 463 5500 SSDD606012 60 60 12 56 56 530 5500 SSDD726012 72 60 12 68 56 633 5500 SSDD727212 72 72 12 68 68 751 5500 SSDD604816 60 48 16 56 44 523 5500 SSDD606016 60 60 16 56 56 650 5500 SSDD726016 72 60 16 68 56 740 5500 SSDD727216 72 72 16 68 68 841 5500 SSDD604820 60 48 20 56 44 589 * For painted stainless steel, add suffix %u2018P%u2019 to the catalog number (i.e. : 5500 SSDD...P)p.644 p.624 p.626 p.616 p.646 p.655 p.598OIL & DUST TIGHT DOUBLE DOOR STAINLESS STEEL ENCLOSURE
