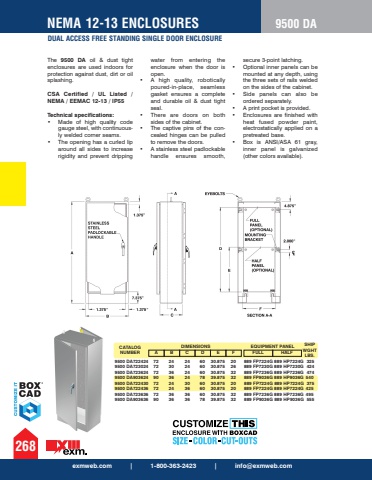

exmweb.com | 1-800-363-2423 | [email protected] 12-13 ENCLOSURESDUAL ACCESS FREE STANDING SINGLE DOOR ENCLOSURE2689500 DAThe 9500 DA oil & dust tight enclosures are used indoors for protection against dust, dirt or oil splashing. CSA Certified / UL Listed / NEMA / EEMAC 12-13 / IP55Technical specifications: %u2022 Made of high quality code gauge steel, with continuously welded corner seams. %u2022 The opening has a curled lip around all sides to increase rigidity and prevent dripping water from entering the enclosure when the door is open. %u2022 A high quality, robotically poured-in-place, seamless gasket ensures a complete and durable oil & dust tight seal. %u2022 There are doors on both sides of the cabinet. %u2022 The captive pins of the concealed hinges can be pulled to remove the doors. %u2022 A stainless steel padlockable handle ensures smooth, secure 3-point latching. %u2022 Optional inner panels can be mounted at any depth, using the three sets of rails welded on the sides of the cabinet. %u2022 Side panels can also be ordered separately. %u2022 A print pocket is provided. %u2022 Enclosures are finished with heat fused powder paint, electrostatically applied on a pretreated base. %u2022 Box is ANSI/ASA 61 gray, inner panel is galvanized (other colors available). CATALOG NUMBER A B C D E FDIMENSIONS SHIP WGHT LBS. FULL HALFEQUIPMENT PANEL9500 DA722424 72 24 24 60 30.875 20 889 FP7224G 889 HP7224G 325 9500 DA723024 72 30 24 60 30.875 26 889 FP7230G 889 HP7230G 424 9500 DA723624 72 36 24 60 30.875 32 889 FP7236G 889 HP7236G 474 9500 DA903624 90 36 24 78 39.875 32 889 FP9036G 889 HP9036G 540 9500 DA722430 72 24 30 60 30.875 20 889 FP7224G 889 HP7224G 375 9500 DA722436 72 24 36 60 30.875 20 889 FP7224G 889 HP7224G 425 9500 DA723636 72 36 36 60 30.875 32 889 FP7236G 889 HP7236G 495 9500 DA903636 90 36 36 78 39.875 32 889 FP9036G 889 HP9036G 555
