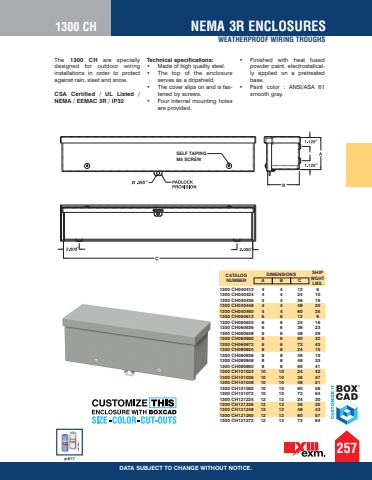

257NEMA 3R ENCLOSURESWEATHERPROOF WIRING TROUGHS1300 CHDATA SUBJECT TO CHANGE WITHOUT NOTICE.The 1300 CH are specially designed for outdoor wiring installations in order to protect against rain, sleet and snow. CSA Certified / UL Listed / NEMA / EEMAC 3R / IP32 Technical specifications: %u2022 Made of high quality steel. %u2022 The top of the enclosure serves as a dripshield. %u2022 The cover slips on and is fastened by screws. %u2022 Four internal mounting holes are provided. %u2022 Finished with heat fused powder paint, electrostatically applied on a pretreated base. %u2022 Paint color : ANSI/ASA 61 smooth gray.p.617%u201d%u201d %u201d%u201d%u201dSELF TAPINGM5 SCREWCATALOG NUMBER A B CDIMENSIONS SHIP WGHT LBS.1300 CH040412 4 4 12 6 1300 CH040424 4 4 24 10 1300 CH040436 4 4 36 16 1300 CH040448 4 4 48 20 1300 CH040460 4 4 60 25 1300 CH060612 6 6 12 9 1300 CH060624 6 6 24 16 1300 CH060636 6 6 36 23 1300 CH060648 6 6 48 29 1300 CH060660 6 6 60 32 1300 CH060672 6 6 72 43 1300 CH080824 8 8 24 15 1300 CH080836 8 8 36 19 1300 CH080848 8 8 48 33 1300 CH080860 8 8 60 41 1300 CH101024 10 10 24 42 1300 CH101036 10 10 36 47 1300 CH101048 10 10 48 51 1300 CH101060 10 10 60 58 1300 CH101072 10 10 72 64 1300 CH121224 12 12 24 30 1300 CH121236 12 12 36 35 1300 CH121248 12 12 48 43 1300 CH121260 12 12 60 57 1300 CH121272 12 12 72 64
