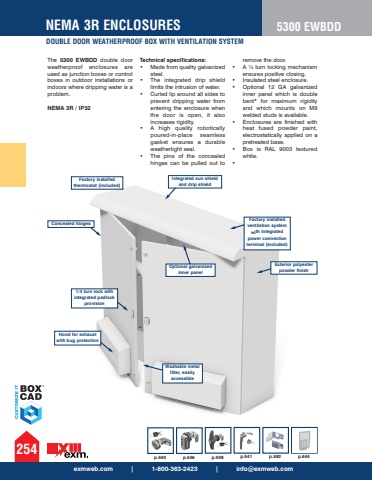

exmweb.com | 1-800-363-2423 | [email protected] 3R ENCLOSURESDOUBLE DOOR WEATHERPROOF BOX WITH VENTILATION SYSTEM2545300 EWBDDExterior polyester powder finishIntegrated sun shield and drip shield1/4 turn lock with integrated padlock provisionHood for exhaust with bug protectionConcealed hingesWashable metal filter, easily accessibleFactory installed ventilation system with integrated power connection terminal (included)Optional galvanized inner panelFactory installed thermostat (included)The 5300 EWBDD double door weatherproof enclosures are used as junction boxes or control boxes in outdoor installations or indoors where dripping water is a problem. NEMA 3R / IP32 Technical specifications:%u2022 Made from quality galvanized steel. %u2022 The integrated drip shield limits the intrusion of water. %u2022 Curled lip around all sides to prevent dripping water from entering the enclosure when the door is open, it also increases rigidity. %u2022 A high quality robotically poured-in-place seamless gasket ensures a durable weathertight seal. %u2022 The pins of the concealed hinges can be pulled out to remove the door. %u2022 A %u00bc turn locking mechanism ensures positive closing. %u2022 Insulated steel enclosure. %u2022 Optional 12 GA galvanized inner panel which is double bent* for maximum rigidity and which mounts on M8 welded studs is available. %u2022 Enclosures are finished with heat fused powder paint, electrostatically applied on a pretreated base. %u2022 Box is RAL 9003 textured white. %u2022p.540 p.546 p.508 p.541 p.592 p.644
