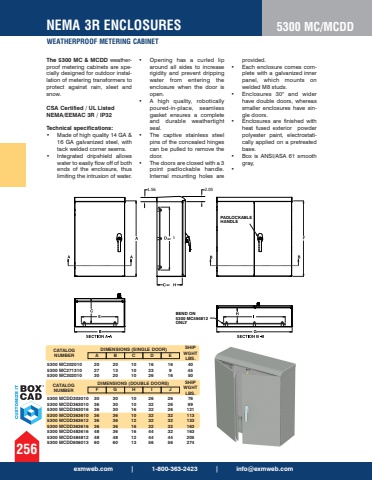

exmweb.com | 1-800-363-2423 | [email protected] 3R ENCLOSURESWEATHERPROOF METERING CABINET2565300 MC/MCDDI1.56 2.05PADLOCKABLEHANDLEBEND ON5300 MC484812ONLYororThe 5300 MC & MCDD weatherproof metering cabinets are specially designed for outdoor installation of metering transformers to protect against rain, sleet and snow. CSA Certified / UL Listed NEMA/EEMAC 3R / IP32 Technical specifications: %u2022 Made of high quality 14 GA & 16 GA galvanized steel, with tack welded corner seems. %u2022 Integrated dripshield allows water to easily flow off of both ends of the enclosure, thus limiting the intrusion of water. %u2022 Opening has a curled lip around all sides to increase rigidity and prevent dripping water from entering the enclosure when the door is open. %u2022 A high quality, robotically poured-in-place, seamless gasket ensures a complete and durable weathertight seal. %u2022 The captive stainless steel pins of the concealed hinges can be pulled to remove the door. %u2022 The doors are closed with a 3 point padlockable handle. Internal mounting holes are provided. %u2022 Each enclosure comes complete with a galvanized inner panel, which mounts on welded M8 studs. %u2022 Enclosures 30\have double doors, whereas smaller enclosures have single doors. %u2022 Enclosures are finished with heat fused exterior powder polyester paint, electrostatically applied on a pretreated base. %u2022 Box is ANSI/ASA 61 smooth gray, %u20225300 MC202010 20 20 10 16 16 40 5300 MC271310 27 13 10 23 9 45 5300 MC302010 30 20 10 26 16 50CATALOG NUMBER A B C D EDIMENSIONS (SINGLE DOOR) SHIP WGHT LBS.CATALOG NUMBER F G H I JDIMENSIONS (DOUBLE DOORS) SHIP WGHT LBS.5300 MCDD303010 30 30 10 26 26 76 5300 MCDD363010 36 30 10 32 26 99 5300 MCDD363016 36 30 16 32 26 121 5300 MCDD363610 36 36 10 32 32 113 5300 MCDD363612 36 36 12 32 32 133 5300 MCDD363616 36 36 16 32 32 163 5300 MCDD483616 48 36 16 44 32 163 5300 MCDD484812 48 48 12 44 44 205 5300 MCDD606013 60 60 13 56 56 274
