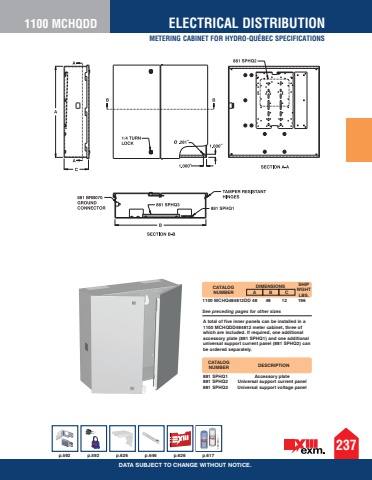

237DATA SUBJECT TO CHANGE WITHOUT NOTICE.ELECTRICAL DISTRIBUTIONMETERING CABINET FOR HYDRO-QU%u00c9BEC SPECIFICATIONS1100 MCHQDDp.592 p.592 p.626 p.646 p.626 p.617%u201d %u201d%u201d1100 MCHQ484812DD 48 48 12 196 See preceding pages for other sizesCATALOG NUMBER A B CDIMENSIONS SHIP WGHT LBS.881 SPHQ1 Accessory plate 881 SPHQ2 Universal support current panel 881 SPHQ3 Universal support voltage panel CATALOG NUMBER DESCRIPTIONA total of five inner panels can be installed in a 1100 MCHQDD484812 meter cabinet, three of which are included. If required, one additional accessory plate (881 SPHQ1) and one additional universal support current panel (881 SPHQ2) can be ordered separately.
