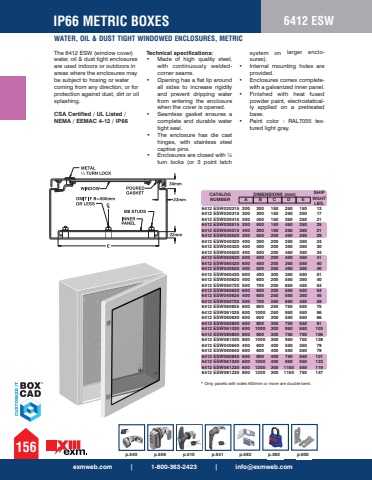

exmweb.com | 1-800-363-2423 | [email protected] 6412 ESW (window cover) water, oil & dust tight enclosures are used indoors or outdoors in areas where the enclosures may be subject to hosing or water coming from any direction, or for protection against dust, dirt or oil splashing. CSA Certified / UL Listed / NEMA / EEMAC 4-12 / IP66 Technical specifications: %u2022 Made of high quality steel, with continuously weldedcorner seams. %u2022 Opening has a flat lip around all sides to increase rigidity and prevent dripping water from entering the enclosure when the cover is opened. %u2022 Seamless gasket ensures a complete and durable water tight seal. %u2022 The enclosure has die cast hinges, with stainless steel captive pins. %u2022 Enclosures are closed with %u00bc turn locks (or 3 point latch system on larger enclosures). %u2022 Internal mounting holes are provided. %u2022 Enclosures comes completewith a galvanized inner panel. %u2022 Finished with heat fused powder paint, electrostatically applied on a pretreated base. %u2022 Paint color : RAL7035 textured light gray.CATALOG NUMBER A B C D EDIMENSIONS (mm) SHIP WGHT LBS.6412 ESW020315 200 300 150 250 150 13 6412 ESW030315 300 300 150 250 250 17 6412 ESW030415 300 400 150 350 250 21 6412 ESW030515 300 500 150 450 250 25 6412 ESW040315 400 300 150 250 350 21 6412 ESW030520 300 500 200 450 250 29 6412 ESW040320 400 300 200 250 350 24 6412 ESW040420 400 400 200 350 350 30 6412 ESW040520 400 500 200 450 350 34 6412 ESW050520 500 500 200 450 450 41 6412 ESW060420 600 400 200 350 550 40 6412 ESW040525 400 500 250 450 350 40 6412 ESW060430 600 400 300 350 550 51 6412 ESW040620 400 600 200 550 350 40 6412 ESW050720 500 700 200 650 450 54 6412 ESW060620 600 600 200 550 550 54 6412 ESW040625 400 600 250 550 350 45 6412 ESW050725 500 700 250 650 450 59 6412 ESW060825 600 800 250 750 550 75 6412 ESW061025 600 1000 250 950 550 96 6412 ESW060630 600 600 300 550 550 66 6412 ESW060830 600 800 300 750 550 81 6412 ESW061030 600 1000 300 950 550 103 6412 ESW080830 800 800 300 750 750 106 6412 ESW081030 800 1000 300 950 750 128 6412 ESW040640 400 600 400 550 350 79 6412 ESW060640 600 600 400 550 550 79 6412 ESW060840 600 800 400 750 550 101 6412 ESW061040 600 1000 400 950 550 123 6412 ESW061230 600 1200 300 1150 550 119 6412 ESW081230 800 1200 300 1150 750 147WATER, OIL & DUST TIGHT WINDOWED ENCLOSURES, METRIC* Only panels with sides 600mm or more are double bent.IP66 METRIC BOXES 6412 ESWp.540 p.506 p.510 p.541 p.592 p.592 p.600
