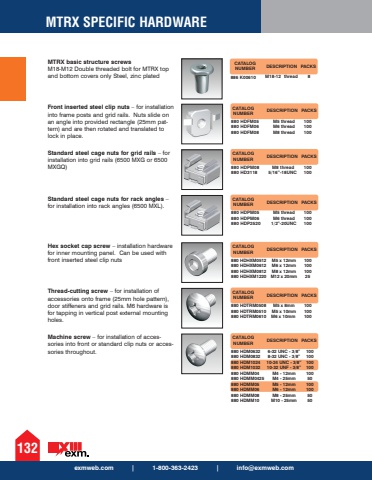

exmweb.com | 1-800-363-2423 | [email protected] SPECIFIC HARDWARE132MTRX basic structure screwsM18-M12 Double threaded bolt for MTRX top and bottom covers only Steel, zinc plated Hex socket cap screw %u2013 installation hardware for inner mounting panel. Can be used with front inserted steel clip nutsCATALOG NUMBER DESCRIPTION PACKS880 HDHXM0512 880 HDHXM0612 880 HDHXM0812 880 HDHXM1220M5 x 12mm M6 x 12mm M8 x 12mm M12 x 20mm 100 100 100 25Thread-cutting screw %u2013 for installation of accessories onto frame (25mm hole pattern), door stiffeners and grid rails. M6 hardware is for tapping in vertical post external mounting holes. CATALOG NUMBER DESCRIPTION PACKS880 HDTRM0508 880 HDTRM0510 880 HDTRM0610M5 x 8mm M5 x 10mm M6 x 10mm100 100 100Machine screw %u2013 for installation of accessories into front or standard clip nuts or accessories throughout. CATALOG NUMBER DESCRIPTION PACKS880 HDM0632 880 HDM0832 880 HDM1024 880 HDM1032 880 HDMM04 880 HDMM0425 880 HDMM05 880 HDMM06 880 HDMM08 880 HDMM106-32 UNC - 3/8%u201d 8-32 UNC - 3/8%u201d 10-24 UNC - 3/8%u201d 10-32 UNF - 3/8%u201d M4 - 12mm M4 - 25mm M5 - 12mm M6 - 12mm M8 - 25mm M10 - 25mm 100 100 100 100 100 50 100 100 50 50 Standard steel cage nuts for rack angles %u2013 for installation into rack angles (6500 MXL). CATALOG NUMBER DESCRIPTION PACKS880 HDPM05 880 HDPM06 880 HDP2520M5 thread M6 thread 1/2%u201d-20UNC 100 100 100Standard steel cage nuts for grid rails %u2013 for installation into grid rails (6500 MXG or 6500 MXGQ) CATALOG NUMBER DESCRIPTION PACKS880 HDPM08 880 HD3118M8 thread 5/16%u2019%u2019-18UNC100 100Front inserted steel clip nuts %u2013 for installation into frame posts and grid rails. Nuts slide on an angle into provided rectangle (25mm pattern) and are then rotated and translated to lock in place. CATALOG NUMBER DESCRIPTION PACKS880 HDFM05 880 HDFM06 880 HDFM08 M5 thread M6 thread M8 thread 100 100 1008CATALOG NUMBER DESCRIPTION PACKS886 K00610 M18-12 thread
