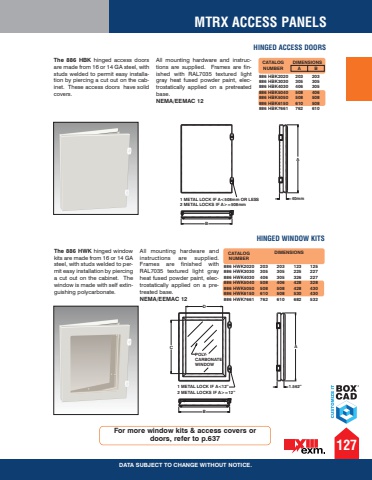

MTRX ACCESS PANELSThe 886 HBK hinged access doors are made from 16 or 14 GA steel, with studs welded to permit easy installation by piercing a cut out on the cabinet. These access doors have solid covers. All mounting hardware and instructions are supplied. Frames are finished with RAL7035 textured light gray heat fused powder paint, electrostatically applied on a pretreated base. NEMA/EEMAC 12The 886 HWK hinged window kits are made from 16 or 14 GA steel, with studs welded to permit easy installation by piercing a cut out on the cabinet. The window is made with self extinguishing polycarbonate. All mounting hardware and instructions are supplied. Frames are finished with RAL7035 textured light gray heat fused powder paint, electrostatically applied on a pretreated base. NEMA/EEMAC 1240mmAB1 METAL LOCK IF A<508mm OR LESS2 METAL LOCKS IF A>=508mm1.562%u201dABCPOLYCARBONATEWINDOW1 METAL LOCK IF A<12%u201d2 METAL LOCKS IF A>=12%u201dDCATALOG NUMBER886 HWK2020 203 203 123 125 886 HWK3030 305 305 225 227 886 HWK4030 406 305 326 227 886 HWK5040 508 406 428 328 886 HWK5050 508 508 428 430 886 HWK6150 610 508 530 430 886 HWK7661 762 610 682 532DIMENSIONSFor more window kits & access covers or doors, refer to p.637CATALOG NUMBER886 HBK2020 203 203 886 HBK3030 305 305 886 HBK4030 406 305 886 HBK5040 508 406 886 HBK5050 508 508 886 HBK6150 610 508 886 HBK7661 762 610A BDIMENSIONSHINGED ACCESS DOORSHINGED WINDOW KITS127DATA SUBJECT TO CHANGE WITHOUT NOTICE.
