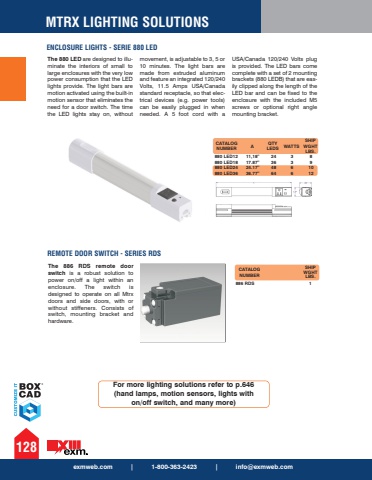

exmweb.com | 1-800-363-2423 | [email protected] LIGHTING SOLUTIONSThe 886 RDS remote door switch is a robust solution to power on/off a light within an enclosure. The switch is designed to operate on all Mtrx doors and side doors, with or without stiffeners. Consists of switch, mounting bracket and hardware. CATALOG NUMBERSHIP WGHT LBS.886 RDS 1For more lighting solutions refer to p.646 (hand lamps, motion sensors, lights with on/off switch, and many more) The 880 LED are designed to illuminate the interiors of small to large enclosures with the very low power consumption that the LED lights provide. The light bars are motion activated using the built-in motion sensor that eliminates the need for a door switch. The time the LED lights stay on, without movement, is adjustable to 3, 5 or 10 minutes. The light bars are made from extruded aluminum and feature an integrated 120/240 Volts, 11.5 Amps USA/Canada standard receptacle, so that electrical devices (e.g. power tools) can be easily plugged in when needed. A 5 foot cord with a USA/Canada 120/240 Volts plug is provided. The LED bars come complete with a set of 2 mounting brackets (880 LEDB) that are easily clipped along the length of the LED bar and can be fixed to the enclosure with the included M5 screws or optional right angle mounting bracket.CATALOG NUMBERSHIP WGHT LBS.A880 LED12 11,18%u201d 24 3 8 880 LED18 17.87%u201d 36 3 9 880 LED24 24.17%u201d 48 6 10 880 LED36 36.77%u201d 64 6 12 QTY LEDS WATTSENCLOSURE LIGHTS - SERIE 880 LEDREMOTE DOOR SWITCH - SERIES RDS
