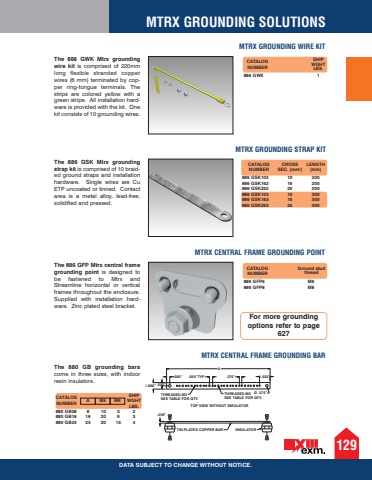

129DATA SUBJECT TO CHANGE WITHOUT NOTICE.The 886 GWK Mtrx grounding wire kit is comprised of 220mm long flexible stranded copper wires (6 mm) terminated by copper ring-tongue terminals. The strips are colored yellow with a green stripe. All installation hardware is provided with the kit. One kit consists of 10 grounding wires. The 886 GSK Mtrx grounding strap kit is comprised of 10 braided ground straps and installation hardware. Single wires are Cu ETP uncoated or tinned. Contact area is a metal alloy, lead-free, solidified and pressed. The 886 GFP Mtrx central frame grounding point is designed to be fastened to Mtrx and Streamline horizontal or vertical frames throughout the enclosure. Supplied with installation hardware. Zinc plated steel bracket. CATALOG NUMBERCROSS SEC. (mm2)886 GSK102 886 GSK162 886 GSK252 886 GSK103 886 GSK163 886 GSK25310 16 25 10 16 25 200 200 200 300 300 300 LENGTH (mm)CATALOG NUMBERSHIP WGHT LBS.886 GWK 1CATALOG NUMBERGround stud thread886 GFP6 M6 886 GFP8 M8The 880 GB grounding barscome in three sizes, with indoor resin insulators. .500%u201d.500%u201d 1.000%u201d.500%u201dTYPA.375%u201d 1.625%u201dTHREADED M5SEE TABLE FOR QTY.THREADED M6SEE TABLE FOR QTY.%u00d8 .375%u201dTOP VIEW WITHOUT INSULATORTIN PLATED COPPER BAR.250%u201dINSULATORCATALOG NUMBER880 GB08 8 10 3 2 880 GB16 16 20 9 3 880 GB24 24 30 15 4SHIP WGHT LBS.A M5 M6For more grounding options refer to page 627MTRX GROUNDING SOLUTIONSMTRX GROUNDING WIRE KITMTRX GROUNDING STRAP KITMTRX CENTRAL FRAME GROUNDING POINTMTRX CENTRAL FRAME GROUNDING BAR
