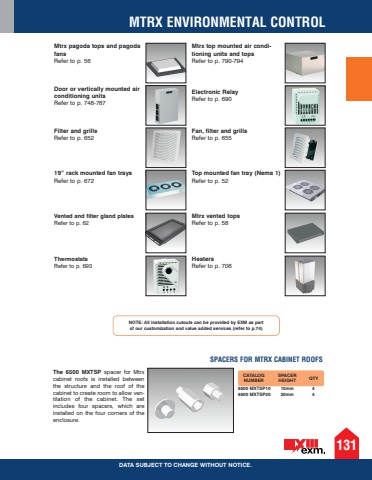

131MTRX ENVIRONMENTAL CONTROLDATA SUBJECT TO CHANGE WITHOUT NOTICE.Mtrx pagoda tops and pagoda fansRefer to p. 56 Door or vertically mounted air conditioning unitsRefer to p. 748-787 Filter and grillsRefer to p. 652 19%u2019%u2019 rack mounted fan traysRefer to p. 672Vented and filter gland platesRefer to p. 62 Thermostats Refer to p. 693 Mtrx top mounted air conditioning units and tops Refer to p. 790-794 Fan, filter and grills Refer to p. 655Top mounted fan tray (Nema 1)Refer to p. 52 Mtrx vented topsRefer to p. 58 HeatersRefer to p. 706 Electronic RelayRefer to p. 690 NOTE: All installation cutouts can be provided by EXM as part of our customization and value added services (refer to p.74)The 6500 MXTSP spacer for Mtrx cabinet roofs is installed between the structure and the roof of the cabinet to create room to allow ventilation of the cabinet. The set includes four spacers, which are installed on the four corners of the enclosure.CATALOG NUMBERSPACER HEIGHT QTY6500 MXTSP10 10mm 4 6500 MXTSP20 20mm 4SPACERS FOR MTRX CABINET ROOFS
