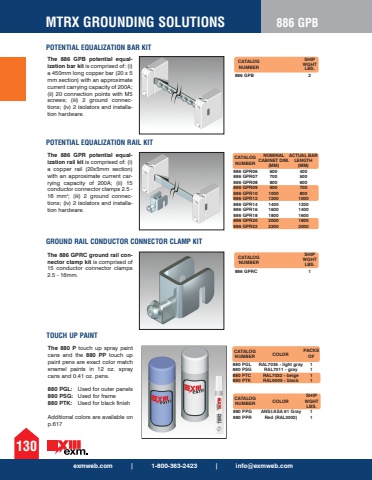

exmweb.com | 1-800-363-2423 | [email protected] GROUNDING SOLUTIONS130886 GPBThe 886 GPB potential equalization bar kit is comprised of: (i) a 450mm long copper bar (20 x 5 mm section) with an approximate current carrying capacity of 200A; (ii) 20 connection points with M5 screws; (iii) 2 ground connections; (iv) 2 isolators and installation hardware. The 886 GPR potential equalization rail kit is comprised of: (i) a copper rail (20x5mm section) with an approximate current carrying capacity of 200A; (ii) 15 conductor connector clamps 2.5 - 16 mm2; (iii) 2 ground connections; (iv) 2 isolators and installation hardware. The 886 GPRC ground rail connector clamp kit is comprised of 15 conductor connector clamps 2.5 - 16mm. CATALOG NUMBERNOMINAL CABINET DIM. (MM) ACTUAL BAR LENGTH (MM) 886 GPR06 886 GPR07 886 GPR08 886 GPR09 886 GPR10 886 GPR12 886 GPR14 886 GPR16 886 GPR18 886 GPR20 886 GPR22 600 700 800 900 1000 1200 1400 1600 1800 2000 2200 400 500 600 700 800 1000 1200 1400 1600 1800 2000 CATALOG NUMBERSHIP WGHT LBS.886 GPB 2CATALOG NUMBERSHIP WGHT LBS.886 GPRC 1The 880 P touch up spray paint cans and the 880 PP touch up paint pens are exact color match enamel paints in 12 oz. spray cans and 0.41 oz. pens. 880 PGL: Used for outer panels880 PSG: Used for frame 880 PTK: Used for black finish Additional colors are available on p.617CATALOG NUMBER880 PGL RAL7035 - light gray 1 880 PSG RAL7011 - gray 1 880 PTC RAL7032 - beige 1 880 PTK RAL9005 - black 1COLOR PACKS OFCATALOG NUMBER COLORSHIP WGHT LBS.880 PPG ANSI/ASA 61 Gray 1 880 PPR Red (RAL3002) 1POTENTIAL EQUALIZATION BAR KITPOTENTIAL EQUALIZATION RAIL KITGROUND RAIL CONDUCTOR CONNECTOR CLAMP KITTOUCH UP PAINT
