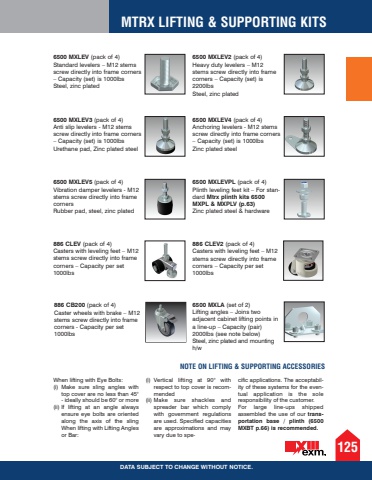

125MTRX LIFTING & SUPPORTING KITSDATA SUBJECT TO CHANGE WITHOUT NOTICE.6500 MXLEV (pack of 4) Standard levelers %u2013 M12 stems screw directly into frame corners %u2013 Capacity (set) is 1000lbsSteel, zinc plated6500 MXLEV3 (pack of 4) Anti slip levelers - M12 stems screw directly into frame corners %u2013 Capacity (set) is 1000lbsUrethane pad, Zinc plated steel6500 MXLEV5 (pack of 4) Vibration damper levelers - M12 stems screw directly into frame corners Rubber pad, steel, zinc plated 886 CLEV (pack of 4) Casters with leveling feet %u2013 M12 stems screw directly into frame corners %u2013 Capacity per set 1000lbs 6500 MXLEV2 (pack of 4) Heavy duty levelers %u2013 M12 stems screw directly into frame corners %u2013 Capacity (set) is 2200lbs Steel, zinc plated 6500 MXLEV4 (pack of 4) Anchoring levelers - M12 stems screw directly into frame corners %u2013 Capacity (set) is 1000lbsZinc plated steel6500 MXLEVPL (pack of 4) Plinth leveling feet kit %u2013 For standard Mtrx plinth kits 6500 MXPL & MXPLV (p.63)Zinc plated steel & hardware 886 CB200 (pack of 4) Caster wheels with brake %u2013 M12 stems screw directly into frame corners - Capacity per set 1000lbs 6500 MXLA (set of 2) Lifting angles %u2013 Joins two adjacent cabinet lifting points in a line-up %u2013 Capacity (pair) 2000lbs (see note below) Steel, zinc plated and mounting h/w When lifting with Eye Bolts: (i) Make sure sling angles withtop cover are no less than 45%u00b0- ideally should be 60%u00b0 or more(ii) If lifting at an angle alwaysensure eye bolts are orientedalong the axis of the slingWhen lifting with Lifting Anglesor Bar:(i) Vertical lifting at 90%u00b0 withrespect to top cover is recommended(ii) Make sure shackles and spreader bar which complywith government regulationsare used. Specified capacitiesare approximations and mayvary due to specific applications. The acceptability of these systems for the eventual application is the sole responsibility of the customer. For large line-ups shipped assembled the use of our transportation base / plinth (6500 MXBT p.66) is recommended.886 CLEV2 (pack of 4) Casters with leveling feet %u2013 M12 stems screw directly into frame corners %u2013 Capacity per set 1000lbsNOTE ON LIFTING & SUPPORTING ACCESSORIES
