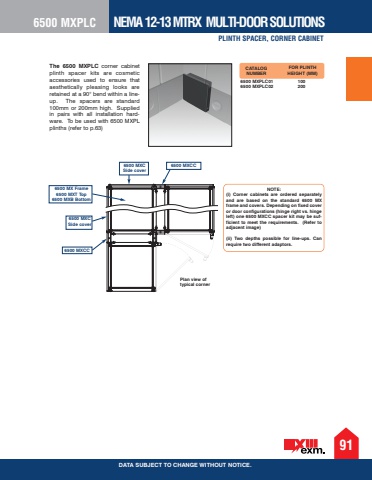

916500 MXPLC NEMA 12-13 MTRX MULTI-DOOR SOLUTIONSDATA SUBJECT TO CHANGE WITHOUT NOTICE.The 6500 MXPLC corner cabinet plinth spacer kits are cosmetic accessories used to ensure that aesthetically pleasing looks are retained at a 90%u00b0 bend within a lineup. The spacers are standard 100mm or 200mm high. Supplied in pairs with all installation hardware. To be used with 6500 MXPL plinths (refer to p.63)NOTE: (i) Corner cabinets are ordered separately and are based on the standard 6500 MX frame and covers. Depending on fixed cover or door configurations (hinge right vs. hinge left) one 6500 MXCC spacer kit may be sufficient to meet the requirements. (Refer to adjacent image) (ii) Two depths possible for line-ups. Can require two different adaptors. CATALOG NUMBER6500 MXPLC01 100 6500 MXPLC02 200 FOR PLINTH HEIGHT (MM)6500 MXC 6500 MXCCSide cover6500 MX Frame 6500 MXT Top 6500 MXB Bottom6500 MXC Side cover6500 MXCCPlan view of typical cornerPLINTH SPACER, CORNER CABINET
