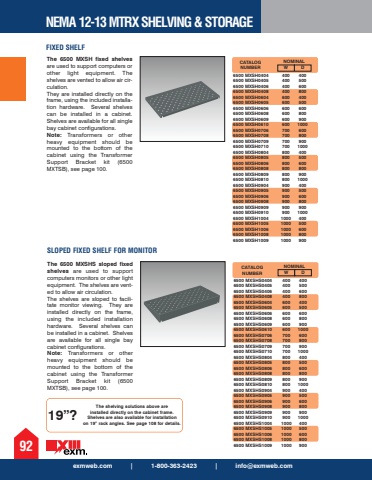

exmweb.com | 1-800-363-2423 | [email protected] 12-13 MTRX SHELVING & STORAGE92The 6500 MXSH fixed shelves are used to support computers or other light equipment. The shelves are vented to allow air circulation. They are installed directly on the frame, using the included installation hardware. Several shelves can be installed in a cabinet. Shelves are available for all single bay cabinet configurations. Note: Transformers or other heavy equipment should be mounted to the bottom of the cabinet using the Transformer Support Bracket kit (6500 MXTSB), see page 100.CATALOG NUMBERThe 6500 MXSHS sloped fixed shelves are used to support computers monitors or other light equipment. The shelves are vented to allow air circulation. The shelves are sloped to facilitate monitor viewing. They are installed directly on the frame, using the included installation hardware. Several shelves can be installed in a cabinet. Shelves are available for all single bay cabinet configurations. Note: Transformers or other heavy equipment should be mounted to the bottom of the cabinet using the Transformer Support Bracket kit (6500 MXTSB), see page 100.CATALOG NUMBER6500 MXSHS0404 400 400 6500 MXSHS0405 400 500 6500 MXSHS0406 400 600 6500 MXSHS0408 400 800 6500 MXSHS0604 600 400 6500 MXSHS0605 600 500 6500 MXSHS0606 600 600 6500 MXSHS0608 600 800 6500 MXSHS0609 600 900 6500 MXSHS0610 600 1000 6500 MXSHS0706 700 600 6500 MXSHS0708 700 800 6500 MXSHS0709 700 900 6500 MXSHS0710 700 1000 6500 MXSHS0804 800 400 6500 MXSHS0805 800 500 6500 MXSHS0806 800 600 6500 MXSHS0808 800 800 6500 MXSHS0809 800 900 6500 MXSHS0810 800 1000 6500 MXSHS0904 900 400 6500 MXSHS0905 900 500 6500 MXSHS0906 900 600 6500 MXSHS0908 900 800 6500 MXSHS0909 900 900 6500 MXSHS0910 900 1000 6500 MXSHS1004 1000 400 6500 MXSHS1005 1000 500 6500 MXSHS1006 1000 600 6500 MXSHS1008 1000 800 6500 MXSHS1009 1000 900W DNOMINAL19%u201d?The shelving solutions above are installed directly on the cabinet frame. Shelves are also available for installation on 19%u201d rack angles. See page 108 for details.6500 MXSH0404 400 400 6500 MXSH0405 400 500 6500 MXSH0406 400 600 6500 MXSH0408 400 800 6500 MXSH0604 600 400 6500 MXSH0605 600 500 6500 MXSH0606 600 600 6500 MXSH0608 600 800 6500 MXSH0609 600 900 6500 MXSH0610 600 1000 6500 MXSH0706 700 600 6500 MXSH0708 700 800 6500 MXSH0709 700 900 6500 MXSH0710 700 1000 6500 MXSH0804 800 400 6500 MXSH0805 800 500 6500 MXSH0806 800 600 6500 MXSH0808 800 800 6500 MXSH0809 800 900 6500 MXSH0810 800 1000 6500 MXSH0904 900 400 6500 MXSH0905 900 500 6500 MXSH0906 900 600 6500 MXSH0908 900 800 6500 MXSH0909 900 900 6500 MXSH0910 900 1000 6500 MXSH1004 1000 400 6500 MXSH1005 1000 500 6500 MXSH1006 1000 600 6500 MXSH1008 1000 800 6500 MXSH1009 1000 900W DNOMINALFIXED SHELFSLOPED FIXED SHELF FOR MONITOR
