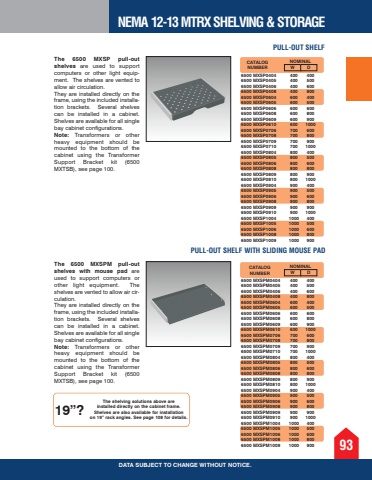

93NEMA 12-13 MTRX SHELVING & STORAGEDATA SUBJECT TO CHANGE WITHOUT NOTICE.The 6500 MXSP pull-out shelves are used to support computers or other light equipment. The shelves are vented to allow air circulation. They are installed directly on the frame, using the included installation brackets. Several shelves can be installed in a cabinet. Shelves are available for all single bay cabinet configurations. Note: Transformers or other heavy equipment should be mounted to the bottom of the cabinet using the Transformer Support Bracket kit (6500 MXTSB), see page 100.CATALOG NUMBER6500 MXSP0404 400 400 6500 MXSP0405 400 500 6500 MXSP0406 400 600 6500 MXSP0408 400 800 6500 MXSP0604 600 400 6500 MXSP0605 600 500 6500 MXSP0606 600 600 6500 MXSP0608 600 800 6500 MXSP0609 600 900 6500 MXSP0610 600 1000 6500 MXSP0706 700 600 6500 MXSP0708 700 800 6500 MXSP0709 700 900 6500 MXSP0710 700 1000 6500 MXSP0804 800 400 6500 MXSP0805 800 500 6500 MXSP0806 800 600 6500 MXSP0808 800 800 6500 MXSP0809 800 900 6500 MXSP0810 800 1000 6500 MXSP0904 900 400 6500 MXSP0905 900 500 6500 MXSP0906 900 600 6500 MXSP0908 900 800 6500 MXSP0909 900 900 6500 MXSP0910 900 1000 6500 MXSP1004 1000 400 6500 MXSP1005 1000 500 6500 MXSP1006 1000 600 6500 MXSP1008 1000 800 6500 MXSP1009 1000 900 The 6500 MXSPM pull-out shelves with mouse pad are used to support computers or other light equipment. The shelves are vented to allow air circulation. They are installed directly on the frame, using the included installation brackets. Several shelves can be installed in a cabinet. Shelves are available for all single bay cabinet configurations. Note: Transformers or other heavy equipment should be mounted to the bottom of the cabinet using the Transformer Support Bracket kit (6500 MXTSB), see page 100.W DNOMINALCATALOG NUMBER6500 MXSPM0404 400 400 6500 MXSPM0405 400 500 6500 MXSPM0406 400 600 6500 MXSPM0408 400 800 6500 MXSPM0604 600 400 6500 MXSPM0605 600 500 6500 MXSPM0606 600 600 6500 MXSPM0608 600 800 6500 MXSPM0609 600 900 6500 MXSPM0610 600 1000 6500 MXSPM0706 700 600 6500 MXSPM0708 700 800 6500 MXSPM0709 700 900 6500 MXSPM0710 700 1000 6500 MXSPM0804 800 400 6500 MXSPM0805 800 500 6500 MXSPM0806 800 600 6500 MXSPM0808 800 800 6500 MXSPM0809 800 900 6500 MXSPM0810 800 1000 6500 MXSPM0904 900 400 6500 MXSPM0905 900 500 6500 MXSPM0906 900 600 6500 MXSPM0908 900 800 6500 MXSPM0909 900 900 6500 MXSPM0910 900 1000 6500 MXSPM1004 1000 400 6500 MXSPM1005 1000 500 6500 MXSPM1006 1000 600 6500 MXSPM1008 1000 800 6500 MXSPM1009 1000 900W DNOMINAL19%u201d?The shelving solutions above are installed directly on the cabinet frame. Shelves are also available for installation on 19%u201d rack angles. See page 108 for details.PULL-OUT SHELFPULL-OUT SHELF WITH SLIDING MOUSE PAD
