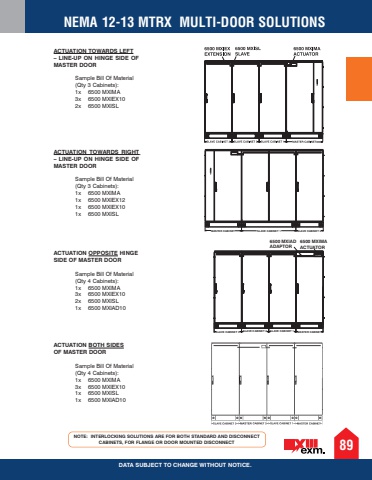

89NEMA 12-13 MTRX MULTI-DOOR SOLUTIONSDATA SUBJECT TO CHANGE WITHOUT NOTICE.ACTUATION TOWARDS LEFT%u2013 LINE-UP ON HINGE SIDE OF MASTER DOORSample Bill Of Material (Qty 3 Cabinets): 1x 6500 MXIMA 3x 6500 MXIEX10 2x 6500 MXISL MASTER CABINET SLAVE CABINET 1 SLAVE CABINET 2ACTUATION OPPOSITE HINGE SIDE OF MASTER DOORSample Bill Of Material (Qty 4 Cabinets): 1x 6500 MXIMA 3x 6500 MXIEX10 2x 6500 MXISL 1x 6500 MXIAD10 SLAVE CABINET 3 SLAVE CABINET 2 SLAVE CABINET 1 MASTER CABINET6500 MXIMAACTUATOR6500 MXIADADAPTORACTUATION BOTH SIDES OF MASTER DOORSample Bill Of Material (Qty 4 Cabinets): 1x 6500 MXIMA 3x 6500 MXIEX10 1x 6500 MXISL 1x 6500 MXIAD10 ACTUATION TOWARDS RIGHT%u2013 LINE-UP ON HINGE SIDE OF MASTER DOORSample Bill Of Material (Qty 3 Cabinets): 1x 6500 MXIMA 1x 6500 MXIEX12 1x 6500 MXIEX10 1x 6500 MXISL NOTE: INTERLOCKING SOLUTIONS ARE FOR BOTH STANDARD AND DISCONNECT CABINETS, FOR FLANGE OR DOOR MOUNTED DISCONNECT
