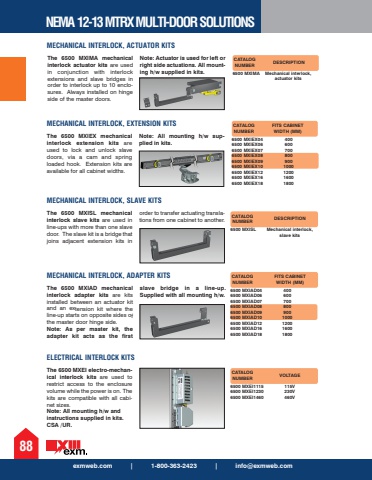

The 6500 MXIAD mechanical interlock adapter kits are kits installed between an actuator kit and an extension kit where the line-up starts on opposite sides of the master door hinge side. Note: As per master kit, the adapter kit acts as the first slave bridge in a line-up. Supplied with all mounting h/w. exmweb.com | 1-800-363-2423 | [email protected] 12-13 MTRX MULTI-DOOR SOLUTIONS88The 6500 MXIMA mechanical interlock actuator kits are used in conjunction with interlock extensions and slave bridges in order to interlock up to 10 enclosures. Always installed on hinge side of the master doors. Note: Actuator is used for left or right side actuations. All mounting h/w supplied in kits. CATALOG NUMBER6500 MXIMA Mechanical interlock, actuator kitsThe 6500 MXIEX mechanical interlock extension kits are used to lock and unlock slave doors, via a cam and spring loaded hook. Extension kits are available for all cabinet widths. Note: All mounting h/w supplied in kits. CATALOG NUMBER6500 MXIEX04 400 6500 MXIEX06 600 6500 MXIEX07 700 6500 MXIEX08 800 6500 MXIEX09 900 6500 MXIEX10 1000 6500 MXIEX12 1200 6500 MXIEX16 1600 6500 MXIEX18 1800FITS CABINET WIDTH (MM) The 6500 MXISL mechanical interlock slave kits are used in line-ups with more than one slave door. The slave kit is a bridge that joins adjacent extension kits in order to transfer actuating translations from one cabinet to another. CATALOG NUMBER6500 MXISL Mechanical interlock, slave kitsDESCRIPTIONDESCRIPTIONCATALOG NUMBER6500 MXIAD04 400 6500 MXIAD06 600 6500 MXIAD07 700 6500 MXIAD08 800 6500 MXIAD09 900 6500 MXIAD10 1000 6500 MXIAD12 1200 6500 MXIAD16 1600 6500 MXIAD18 1800FITS CABINET WIDTH (MM) MECHANICAL INTERLOCK, ACTUATOR KITSMECHANICAL INTERLOCK, EXTENSION KITSMECHANICAL INTERLOCK, SLAVE KITSMECHANICAL INTERLOCK, ADAPTER KITSThe 6500 MXEI electro-mechanical interlock kits are used to restrict access to the enclosure volume while the power is on. The kits are compatible with all cabinet sizes. Note: All mounting h/w and instructions supplied in kits. CSA /UR.CATALOG NUMBER6500 MXEI1115 115V 6500 MXEI1230 230V 6500 MXEI1460 460VVOLTAGEELECTRICAL INTERLOCK KITS
