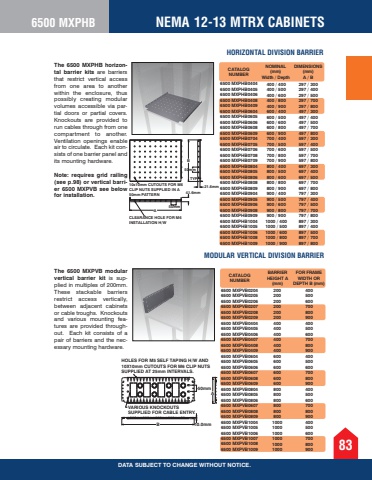

6500 MXPHB83NEMA 12-13 MTRX CABINETSDATA SUBJECT TO CHANGE WITHOUT NOTICE.DIMENSIONS (mm) A / B297 / 300 297 / 400 297 / 500 297 / 700 297 / 800 497 / 300 497 / 400 497 / 500 497 / 700 497 / 800 597 / 300 597 / 400 597 / 500 597 / 700 597 / 800 697 / 300 697 / 400 697 / 500 697 / 700 697 / 800 797 / 300 797 / 400 797 / 500 797 / 700 797 / 800 897 / 300 897 / 400 897 / 500 897 / 700 897 / 800FOR FRAME WIDTH OR DEPTH B (mm)400 500 600 700 800 900 400 500 600 700 800 900 400 500 600 700 800 900 400 500 600 700 800 900 400 500 600 700 800 900 The 6500 MXPHB horizontal barrier kits are barriers that restrict vertical access from one area to another within the enclosure, thus possibly creating modular volumes accessible via partial doors or partial covers. Knockouts are provided to run cables through from one compartment to another. Ventilation openings enable air to circulate. Each kit consists of one barrier panel and its mounting hardware. Note: requires grid railing (see p.98) or vertical barrier 6500 MXPVB see below for installation.CATALOG NUMBERNOMINAL (mm) Width / Depth 6500 MXPHB0404 6500 MXPHB0405 6500 MXPHB0406 6500 MXPHB0408 6500 MXPHB0409 6500 MXPHB0604 6500 MXPHB0605 6500 MXPHB0606 6500 MXPHB0608 6500 MXPHB0609 6500 MXPHB0704 6500 MXPHB0705 6500 MXPHB0706 6500 MXPHB0708 6500 MXPHB0709 6500 MXPHB0804 6500 MXPHB0805 6500 MXPHB0806 6500 MXPHB0808 6500 MXPHB0809 6500 MXPHB0904 6500 MXPHB0905 6500 MXPHB0906 6500 MXPHB0908 6500 MXPHB0909 6500 MXPHB1004 6500 MXPHB1005 6500 MXPHB1006 6500 MXPHB1008 6500 MXPHB1009 400 / 400 400 / 500 400 / 600 400 / 800 400 / 900 600 / 400 600 / 500 600 / 600 600 / 800 600 / 900 700 / 400 700 / 500 700 / 600 700 / 800 700 / 900 800 / 400 800 / 500 800 / 600 800 / 800 800 / 900 900 / 400 900 / 500 900 / 600 900 / 800 900 / 900 1000 / 400 1000 / 500 1000 / 600 1000 / 800 1000 / 900 A41.6mmB21.6mm50mmTYP.10x10mm CUTOUTS FOR M6CLIP NUTS SUPPLIED IN A50mm PATTERNCLEARANCE HOLE FOR M6INSTALLATION H/W50mmThe 6500 MXPVB modular vertical barrier kit is supplied in multiples of 200mm. These stackable barriers restrict access vertically, between adjacent cabinets or cable troughs. Knockouts and various mounting features are provided throughout. Each kit consists of a pair of barriers and the necessary mounting hardware. CATALOG NUMBERBARRIER HEIGHT A (mm)6500 MXPVB0204 6500 MXPVB0205 6500 MXPVB0206 6500 MXPVB0207 6500 MXPVB0208 6500 MXPVB0209 6500 MXPVB0404 6500 MXPVB0405 6500 MXPVB0406 6500 MXPVB0407 6500 MXPVB0408 6500 MXPVB0409 6500 MXPVB0604 6500 MXPVB0605 6500 MXPVB0606 6500 MXPVB0607 6500 MXPVB0608 6500 MXPVB0609 6500 MXPVB0804 6500 MXPVB0805 6500 MXPVB0806 6500 MXPVB0607 6500 MXPVB0808 6500 MXPVB0809 6500 MXPVB1004 6500 MXPVB1005 6500 MXPVB1006 6500 MXPVB1007 6500 MXPVB1008 6500 MXPVB1009 200 200 200 200 200 200 400 400 400 400 400 400 600 600 600 600 600 600 800 800 800 800 800 800 1000 1000 1000 1000 1000 1000 BA10.0mm50mmVARIOUS KNOCKOUTSSUPPLIED FOR CABLE ENTRY.HOLES FOR M5 SELF TAPING H/W AND10X10mm CUTOUTS FOR M6 CLIP NUTSSUPPLIED AT 25mm INTERVALS.HORIZONTAL DIVISION BARRIERMODULAR VERTICAL DIVISION BARRIER
