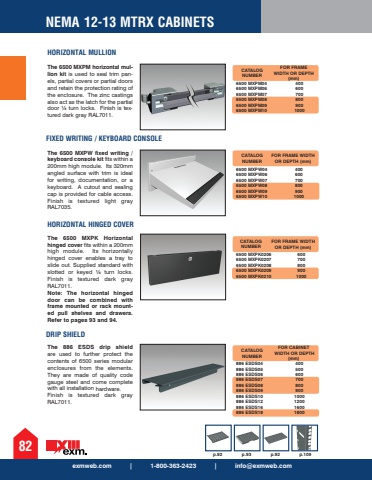

exmweb.com | 1-800-363-2423 | [email protected] 12-13 MTRX CABINETS82The 6500 MXPM horizontal mullion kit is used to seal trim panels, partial covers or partial doors and retain the protection rating of the enclosure. The zinc castings also act as the latch for the partial door %u00bc turn locks. Finish is textured dark gray RAL7011. The 6500 MXPW fixed writing / keyboard console kit fits within a 200mm high module. Its 320mm angled surface with trim is ideal for writing, documentation, or a keyboard. A cutout and sealing cap is provided for cable access. Finish is textured light gray RAL7035. The 6500 MXPK Horizontal hinged cover fits within a 200mm high module. Its horizontally hinged cover enables a tray to slide out. Supplied standard with slotted or keyed %u00bc turn locks. Finish is textured dark gray RAL7011. Note: The horizontal hinged door can be combined with frame mounted or rack mounted pull shelves and drawers. Refer to pages 93 and 94. The 886 ESDS drip shield are used to further protect the contents of 6500 series modular enclosures from the elements. They are made of quality code gauge steel and come complete with all installation hardware. Finish is textured dark gray RAL7011.FOR FRAME WIDTH OR DEPTH (mm)6500 MXPM04 6500 MXPM06 6500 MXPM07 6500 MXPM08 6500 MXPM09 6500 MXPM10 400 600 700 800 900 1000 FOR FRAME WIDTH OR DEPTH (mm) 6500 MXPW04 6500 MXPW06 6500 MXPW07 6500 MXPW08 6500 MXPW09 6500 MXPW10 400 600 700 800 900 1000FOR FRAME WIDTH OR DEPTH (mm)6500 MXPK0206 6500 MXPK0207 6500 MXPK0208 6500 MXPK0209 6500 MXPK0210 600 700 800 900 1000FOR CABINET WIDTH OR DEPTH (mm)886 ESDS04 886 ESDS05 886 ESDS06 886 ESDS07 886 ESDS08 886 ESDS09 886 ESDS10 886 ESDS12 886 ESDS16 886 ESDS18 400 500 600 700 800 900 1000 1200 1600 1800 CATALOG NUMBERCATALOG NUMBERCATALOG NUMBERp.92 p.93 p.92 p.109CATALOG NUMBERHORIZONTAL MULLIONFIXED WRITING / KEYBOARD CONSOLEHORIZONTAL HINGED COVERDRIP SHIELD
