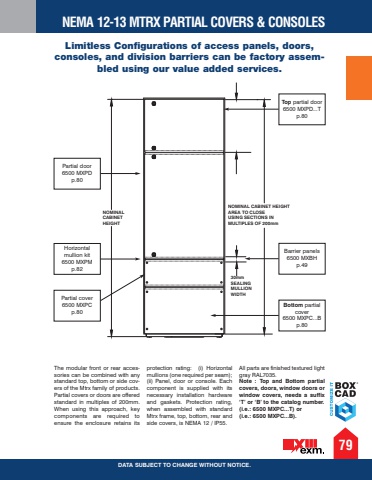

NOMINAL CABINET HEIGHTAREA TO CLOSEUSING SECTIONS INMULTIPLES OF 200mm30mmSEALINGMULLIONWIDTHNOMINALCABINETHEIGHT79NEMA 12-13 MTRX PARTIAL COVERS & CONSOLESDATA SUBJECT TO CHANGE WITHOUT NOTICE.The modular front or rear accessories can be combined with any standard top, bottom or side covers of the Mtrx family of products. Partial covers or doors are offered standard in multiples of 200mm. When using this approach, key components are required to ensure the enclosure retains its protection rating: (i) Horizontal mullions (one required per seam); (ii) Panel, door or console. Eachcomponent is supplied with itsnecessary installation hardwareand gaskets. Protection rating,when assembled with standardMtrx frame, top, bottom, rear andside covers, is NEMA 12 / IP55.All parts are finished textured light gray RAL7035. Note : Top and Bottom partial covers, doors, window doors or window covers, needs a suffix %u2018T%u2019 or %u2018B%u2019 to the catalog number. (i.e.: 6500 MXPC...T) or (i.e.: 6500 MXPC...B).Limitless Configurations of access panels, doors, consoles, and division barriers can be factory assembled using our value added services.Horizontal mullion kit 6500 MXPM p.82Partial door 6500 MXPD p.80Top partial door 6500 MXPD...T p.80Barrier panels 6500 MXBH p.49Partial cover 6500 MXPC p.80Bottom partial cover 6500 MXPC...B p.80
